Component details omitted
All disassembly and reassembly procedures omitted
I’m only sharing the parts I personally enjoyed
Upon receiving the amplifier, remove the felt trim panels on both sides of the trunk
Save a photo of this location (shown in the image below) if you’ve never installed one before—it’ll help you locate the factory-prepared mounting position later.

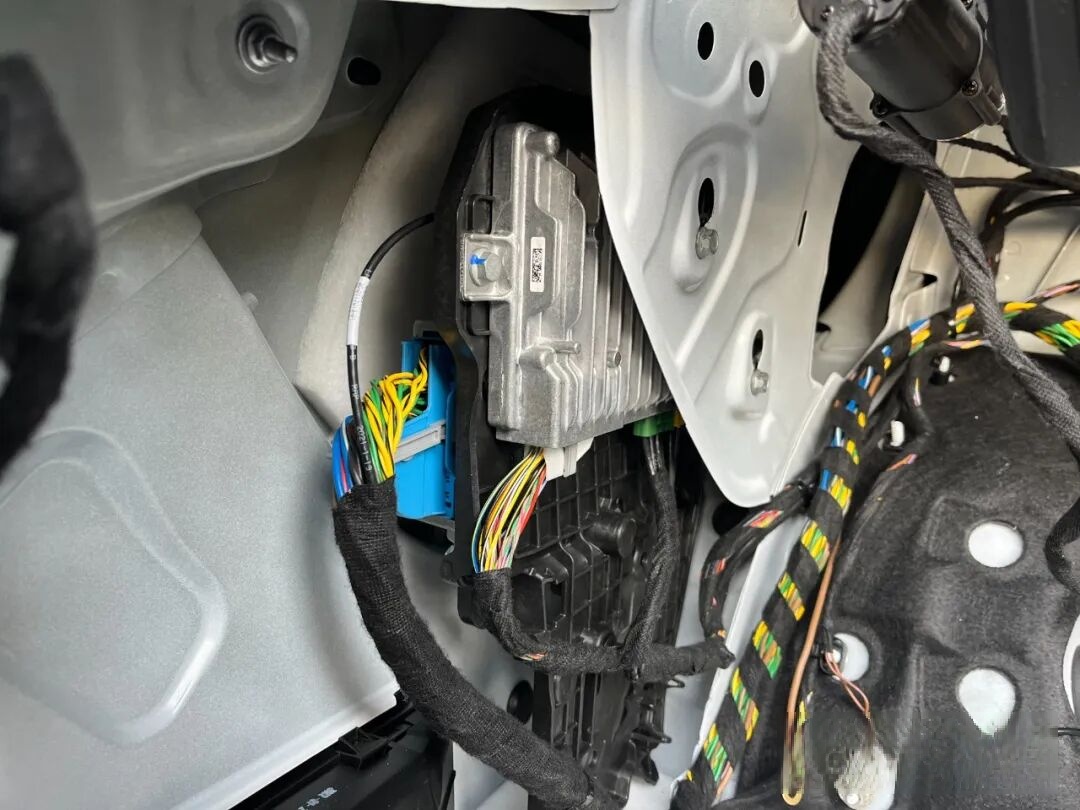

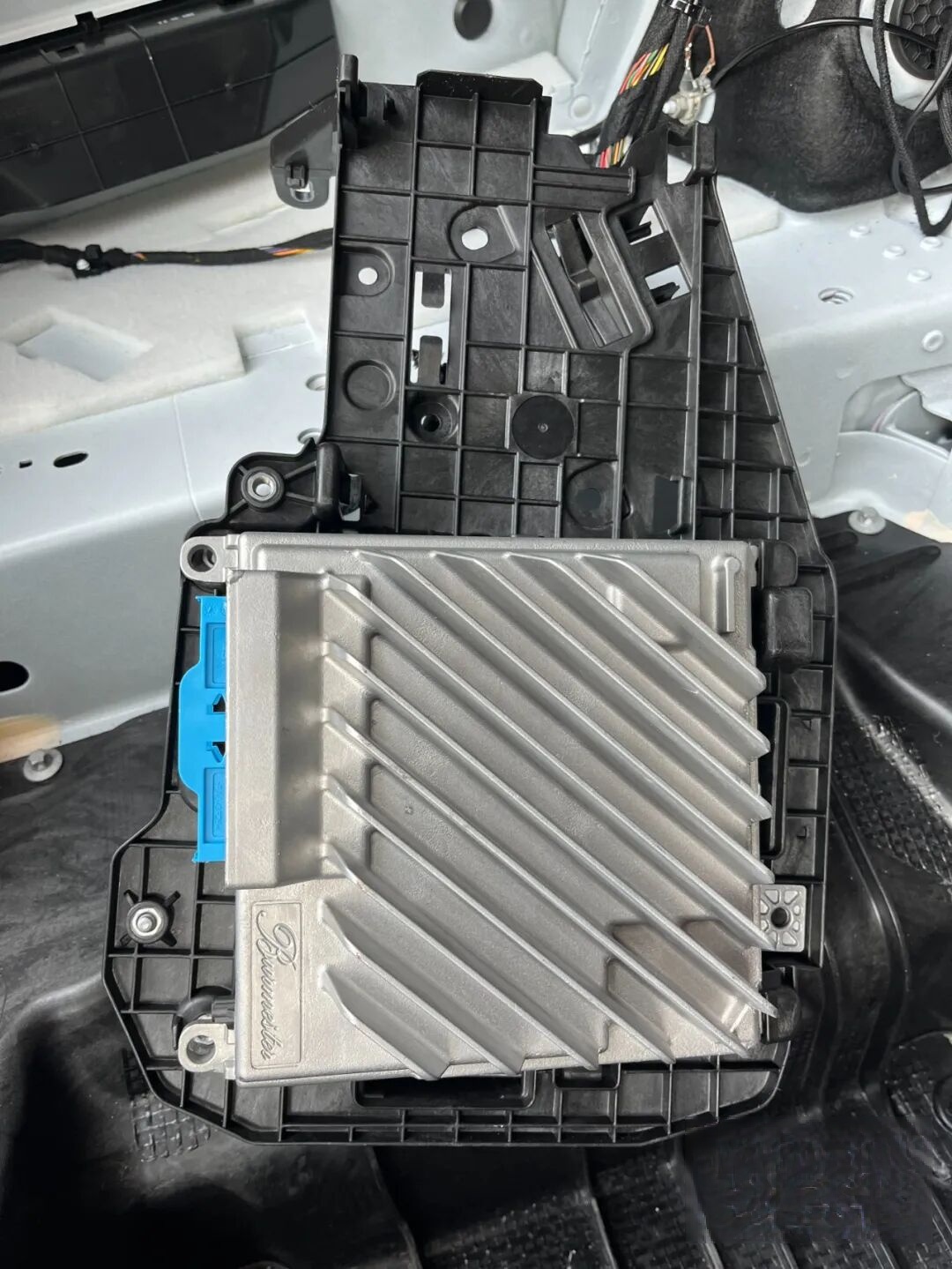

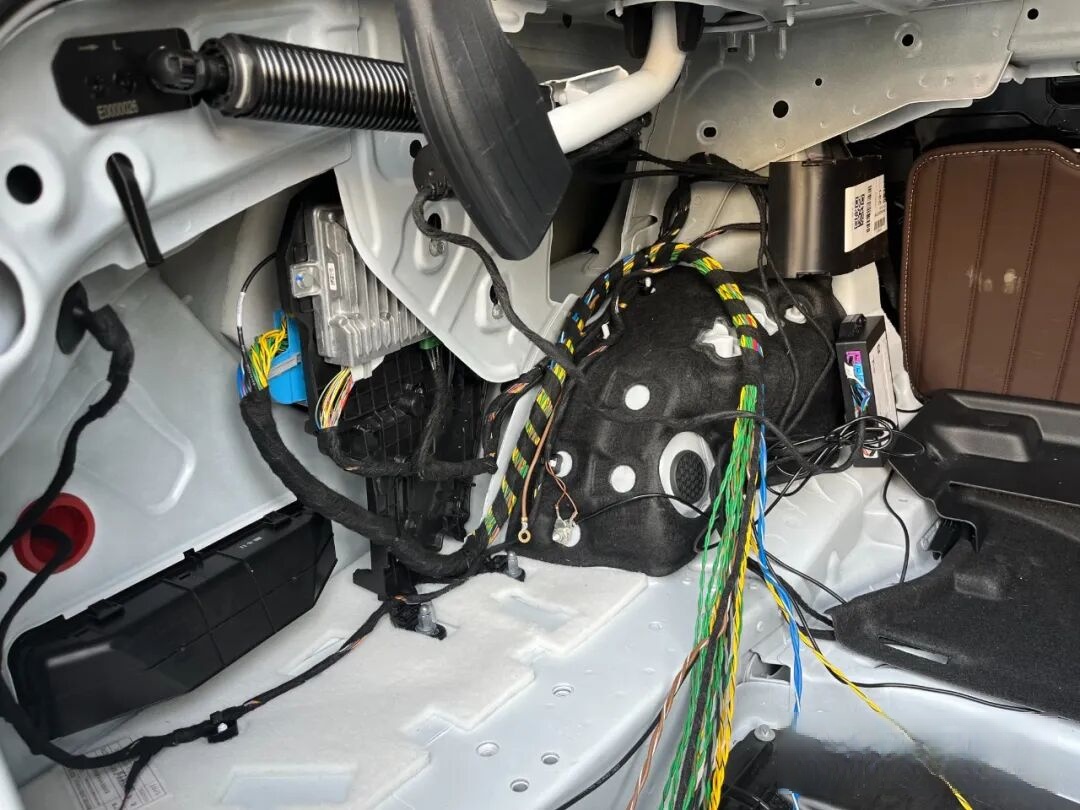

The amplifier is mounted directly onto the vehicle’s original 360° camera module bracket

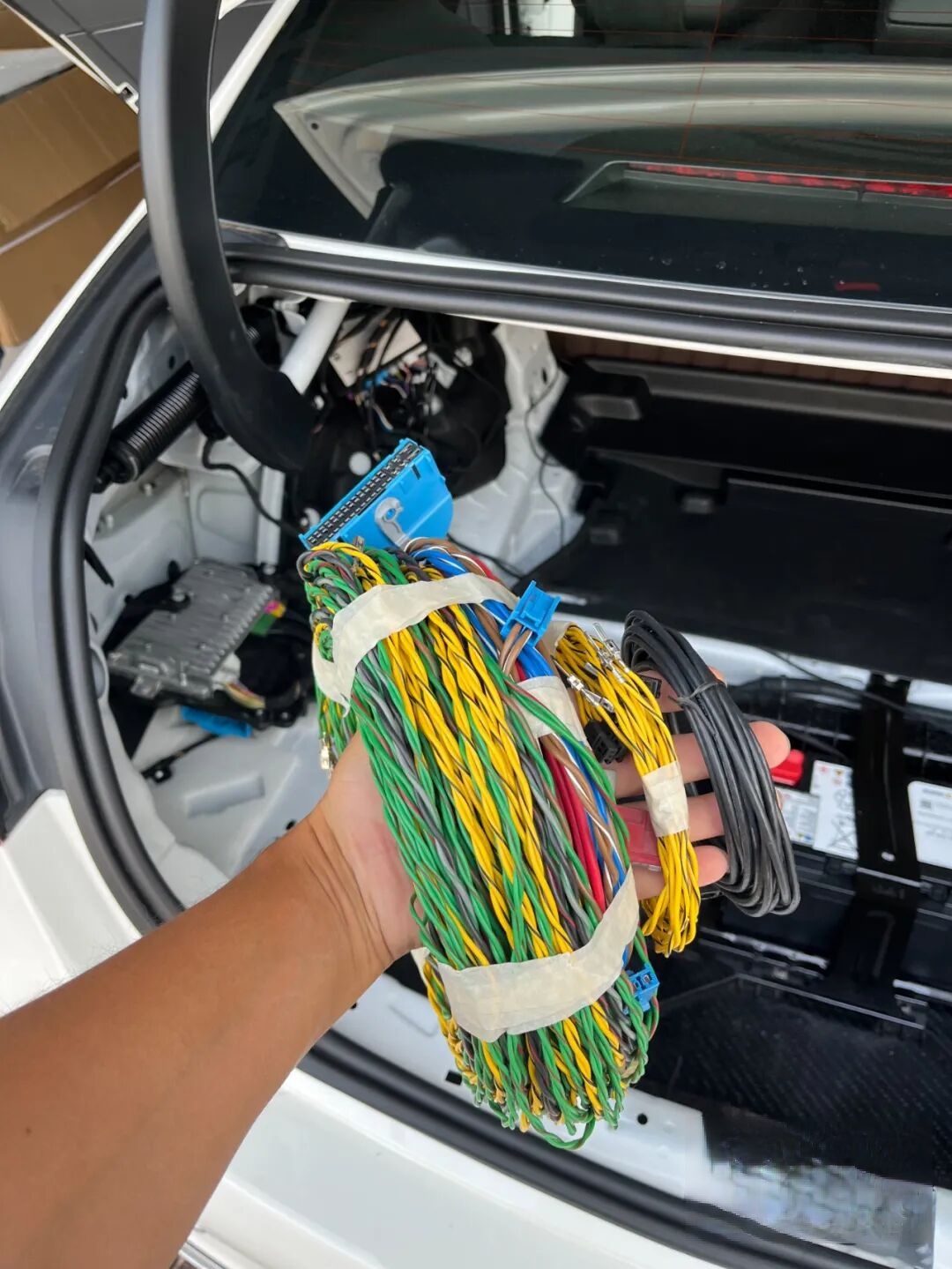

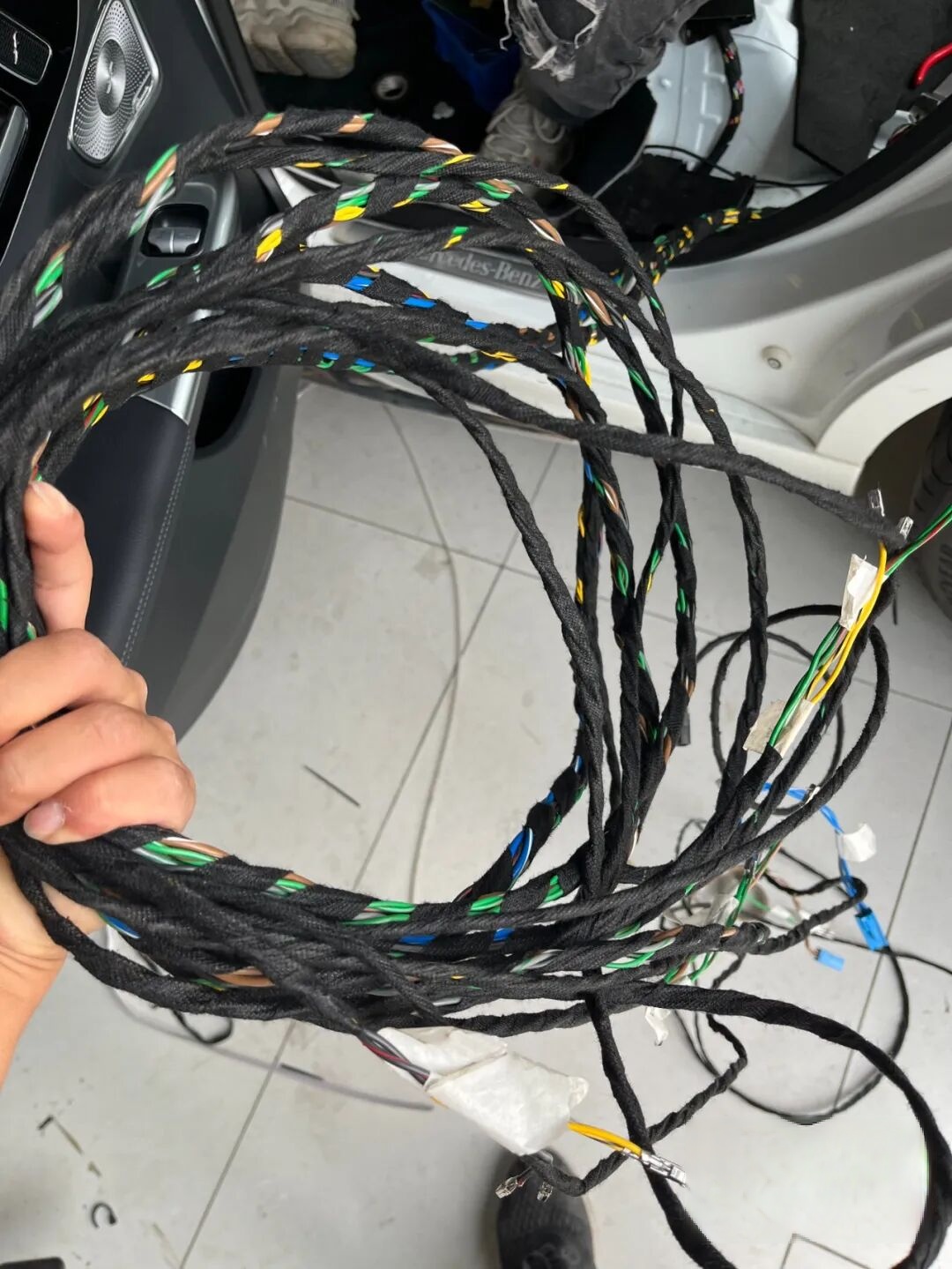

Unroll this large harness—estimated time to complete the full standard installation: ~10 hours
Re-mount and secure the amplifier; route and secure ground wiring to the vehicle’s original grounding point

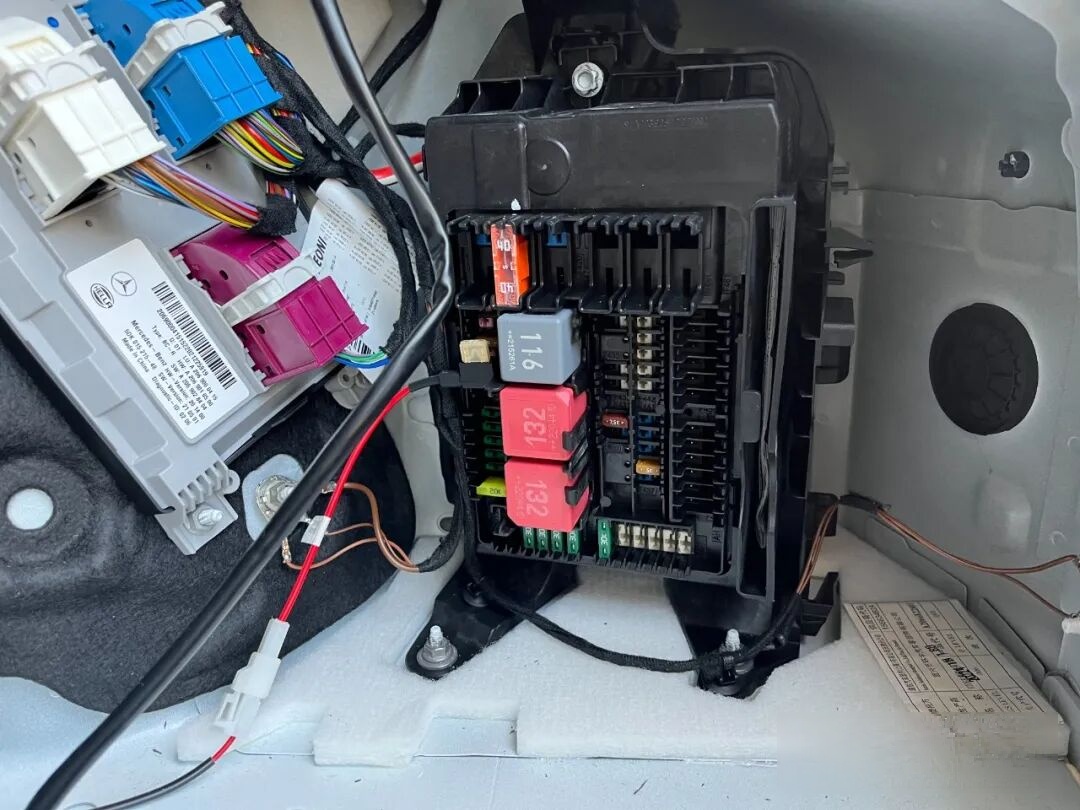

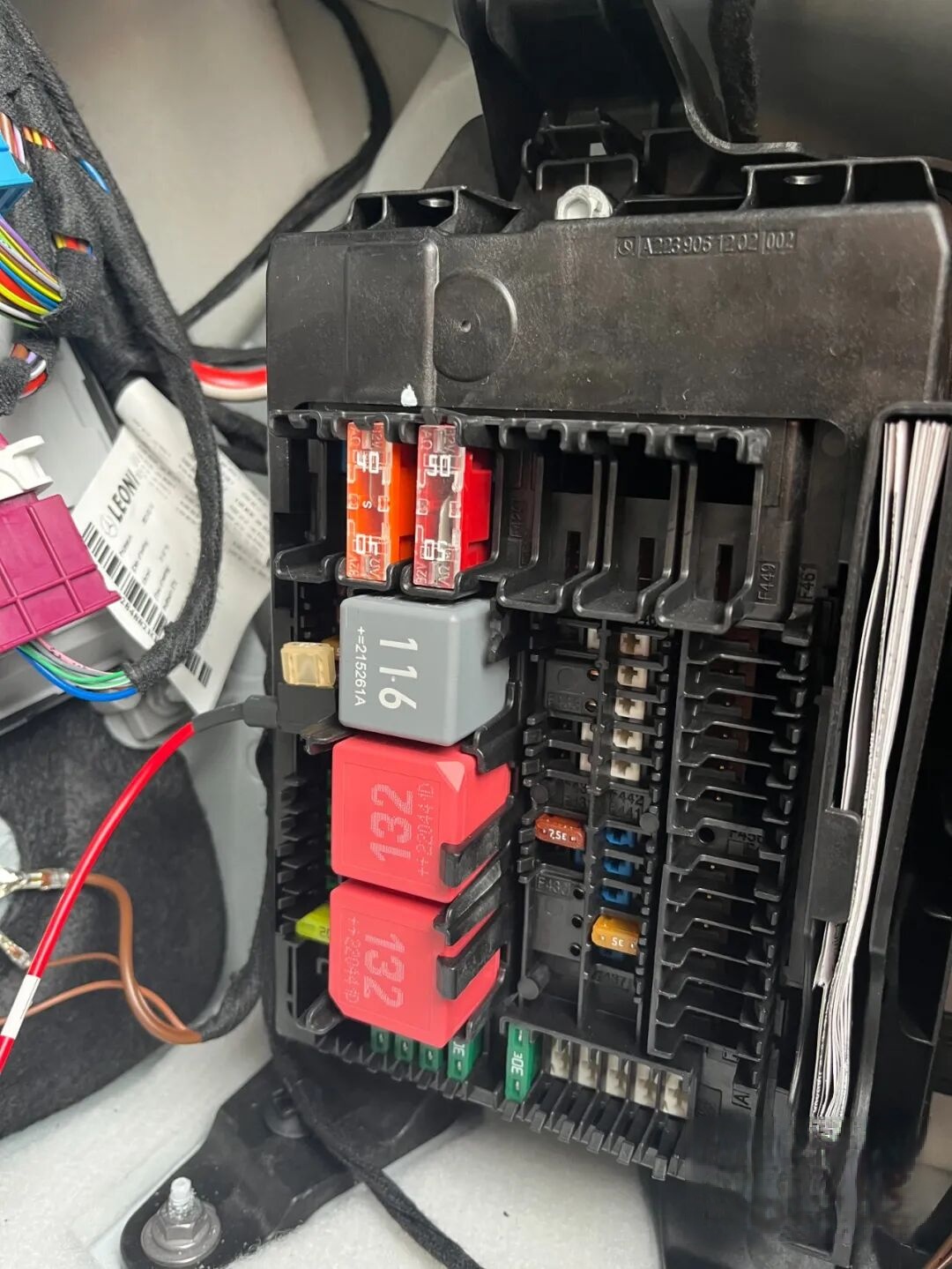

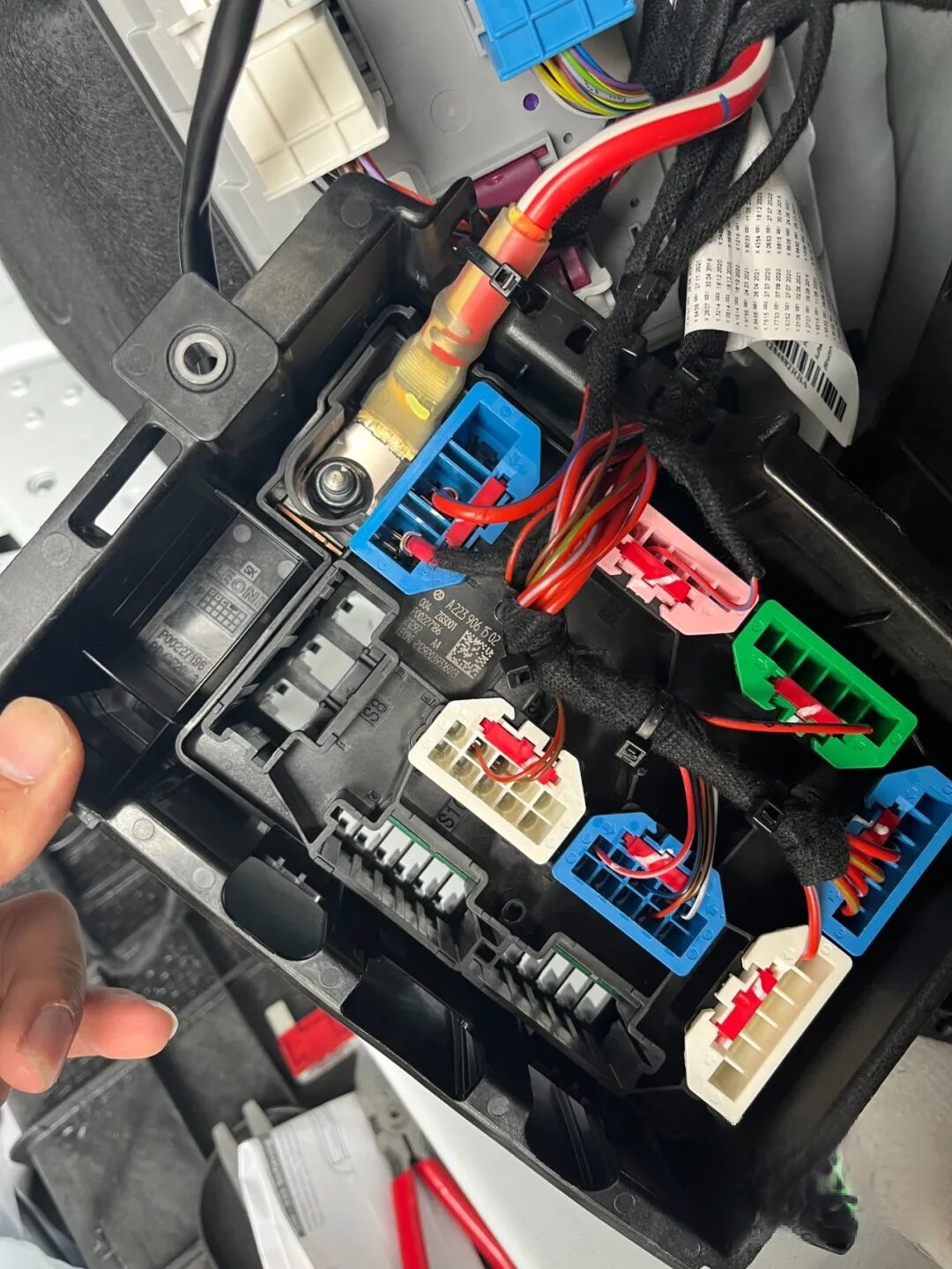

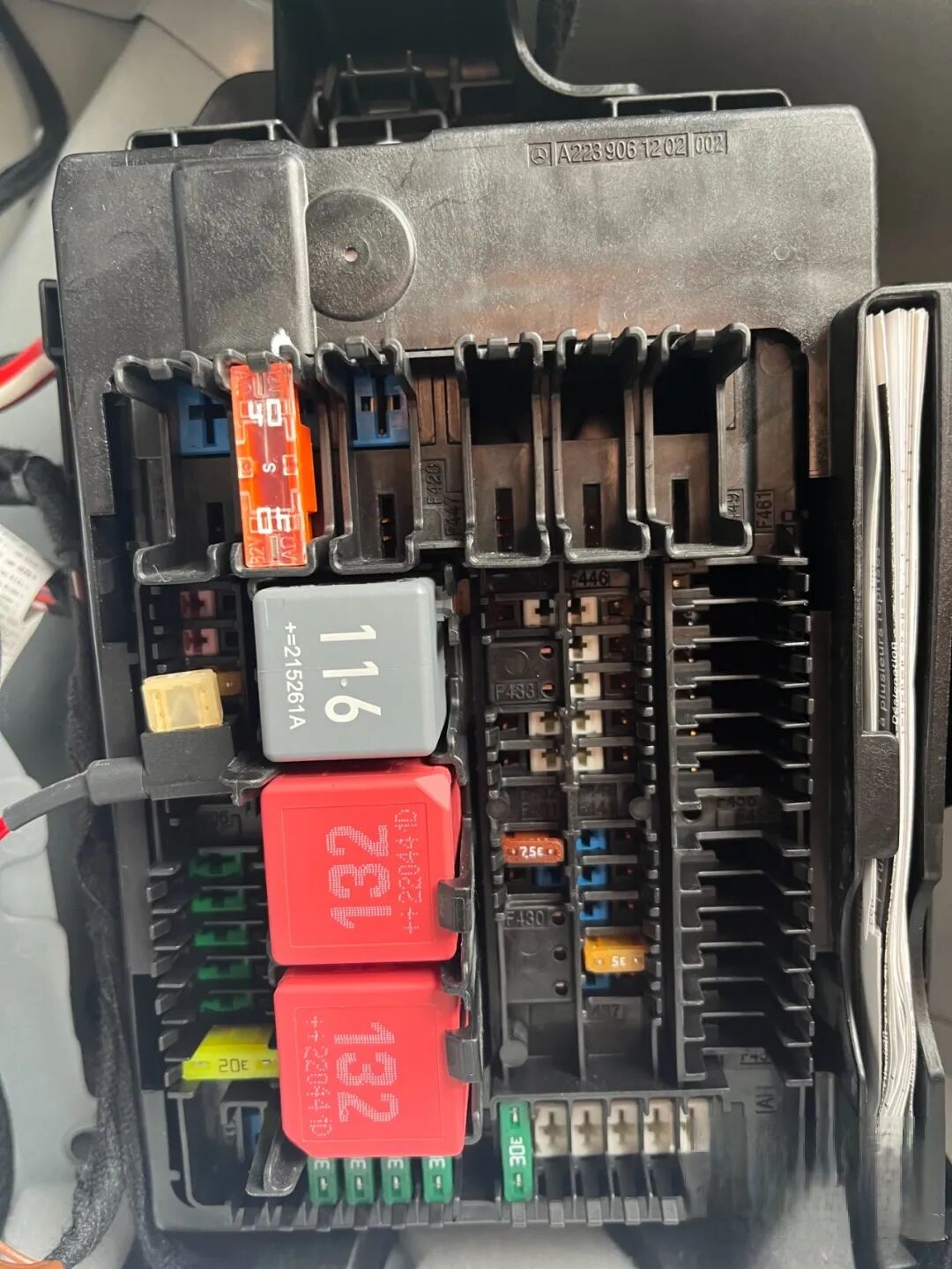

Power is drawn from the right-side fuse box—ignore any aftermarket tailgate wiring

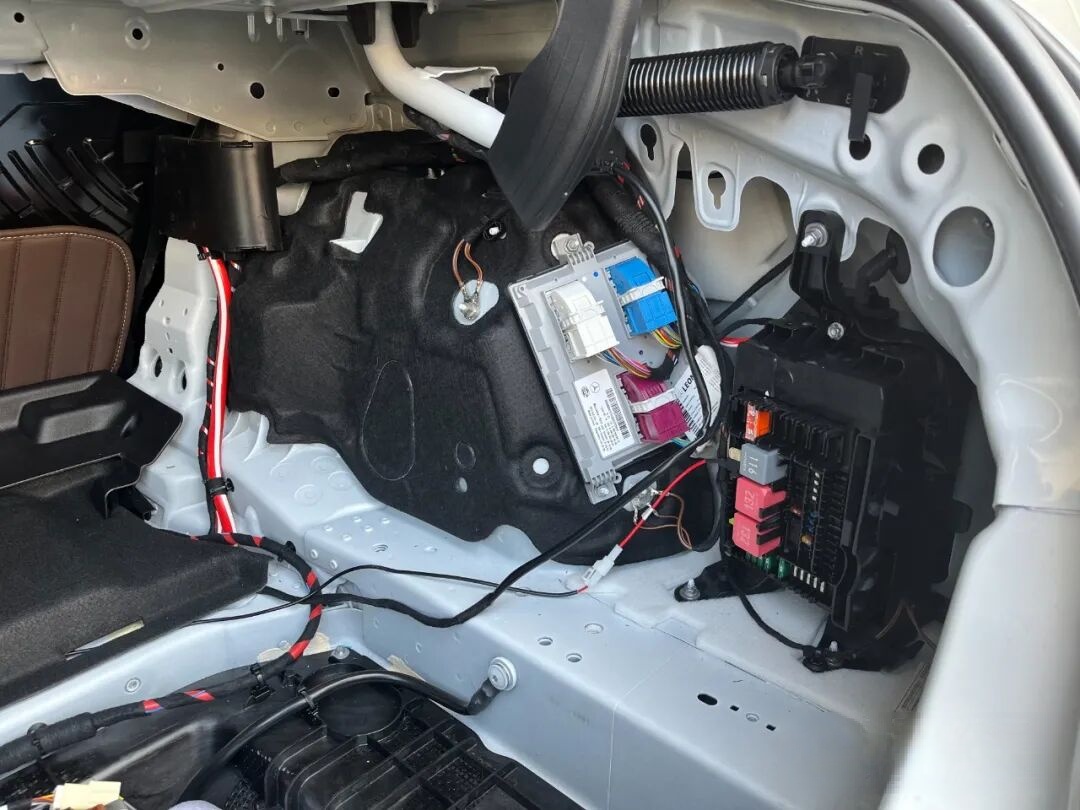

Route the main power cable to the fuse box and secure it in place, ready for connection

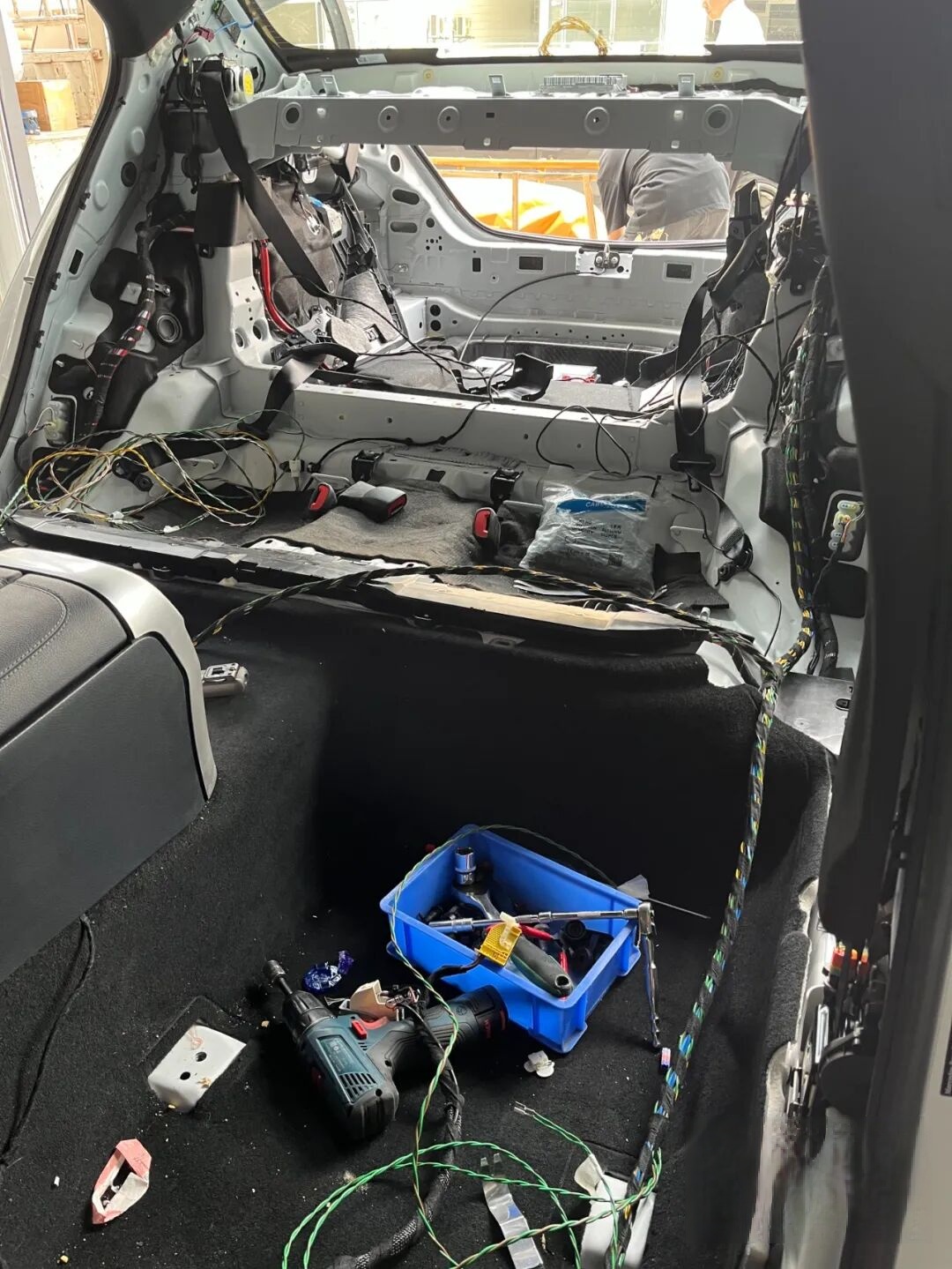

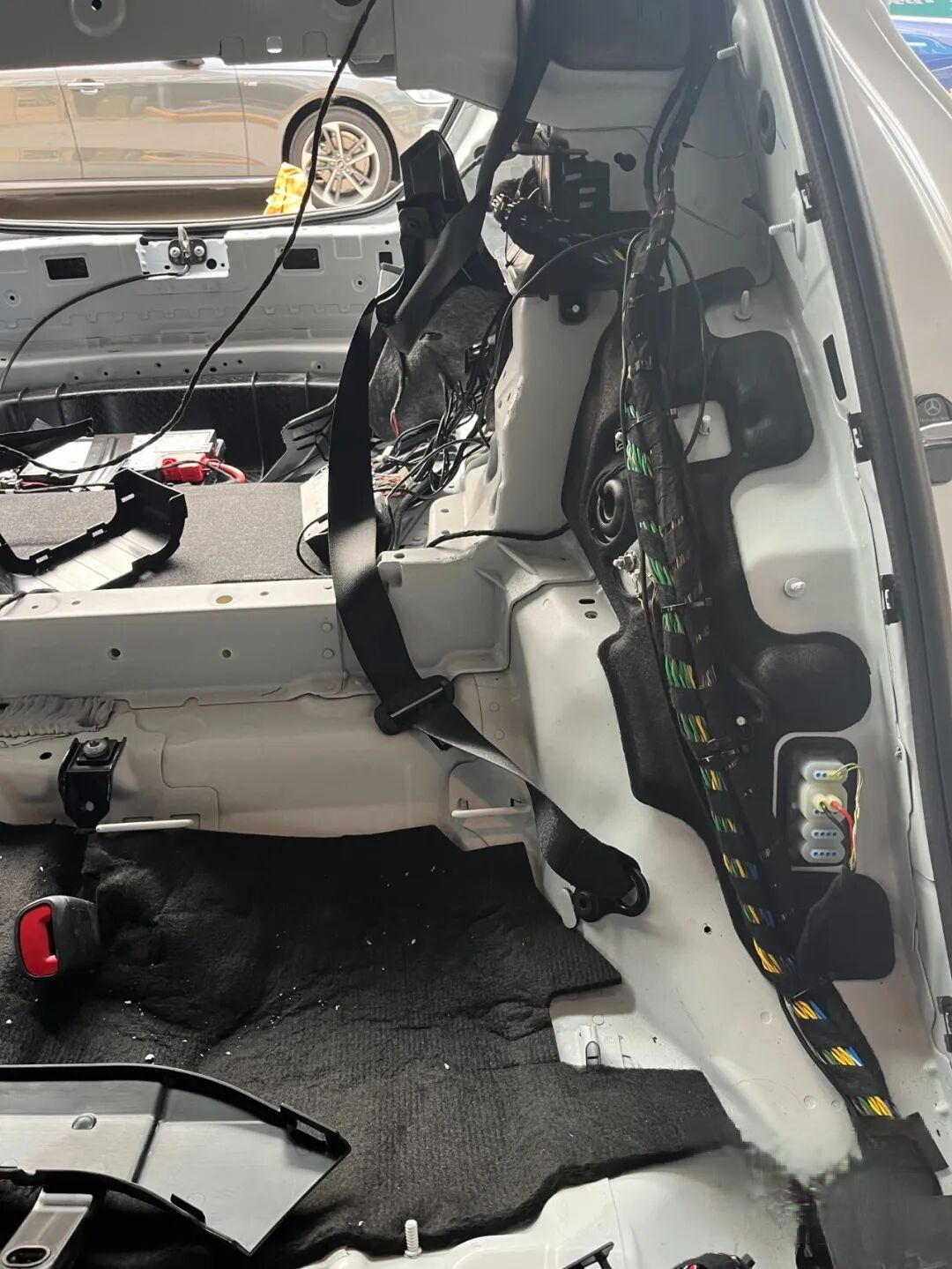

Remove the entire rear seat assembly—including D-pillar trims and rear parcel shelf—to organize and group the wiring harnesses
Route and secure wiring according to its designated path and final installation points
Bundle and label all wiring harnesses—this step takes approximately two hours
Install the front-driver-side subwoofer and route its associated wiring

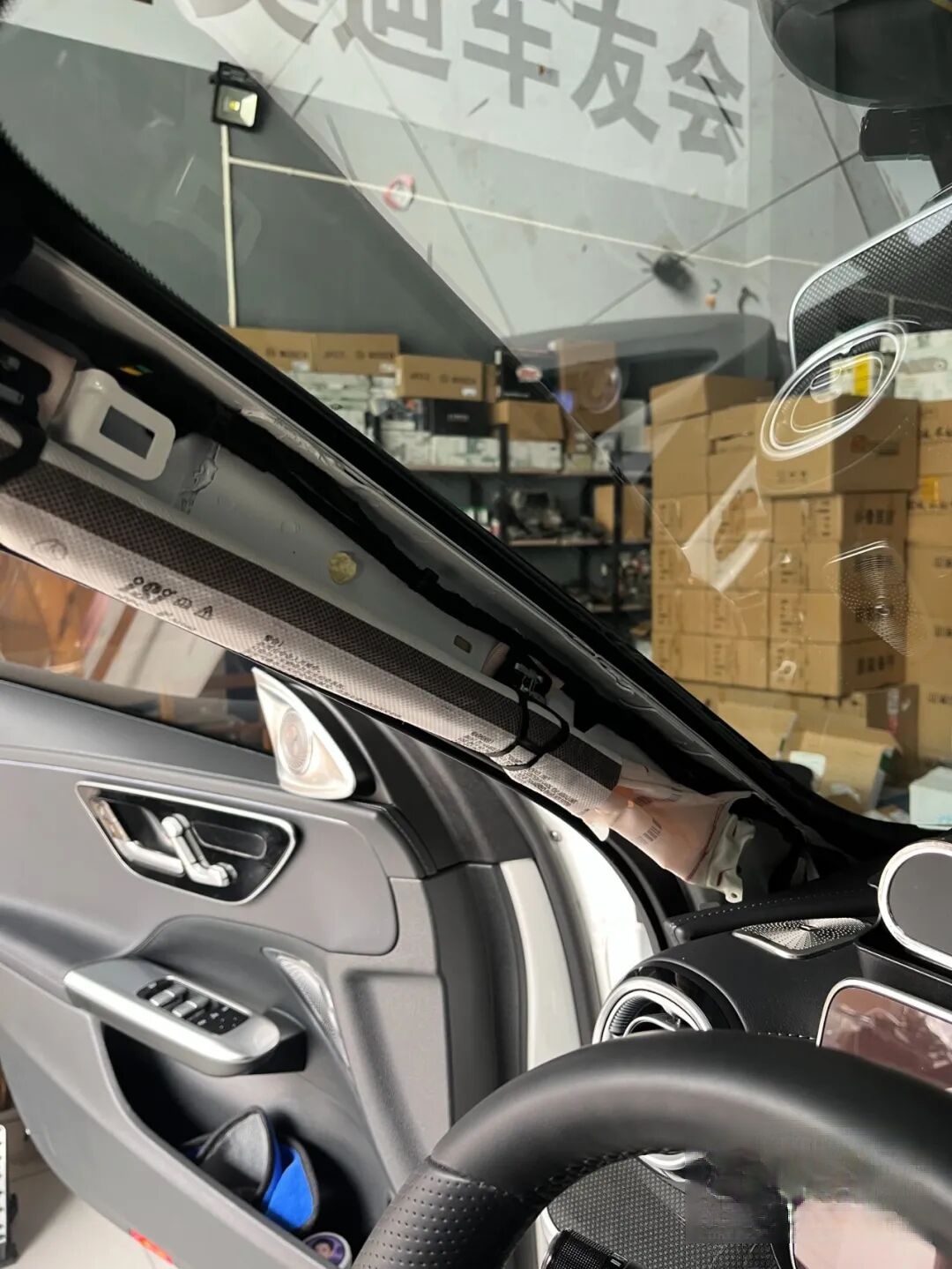

Remove the A-pillar trim to route wiring for the roof-mounted speakers

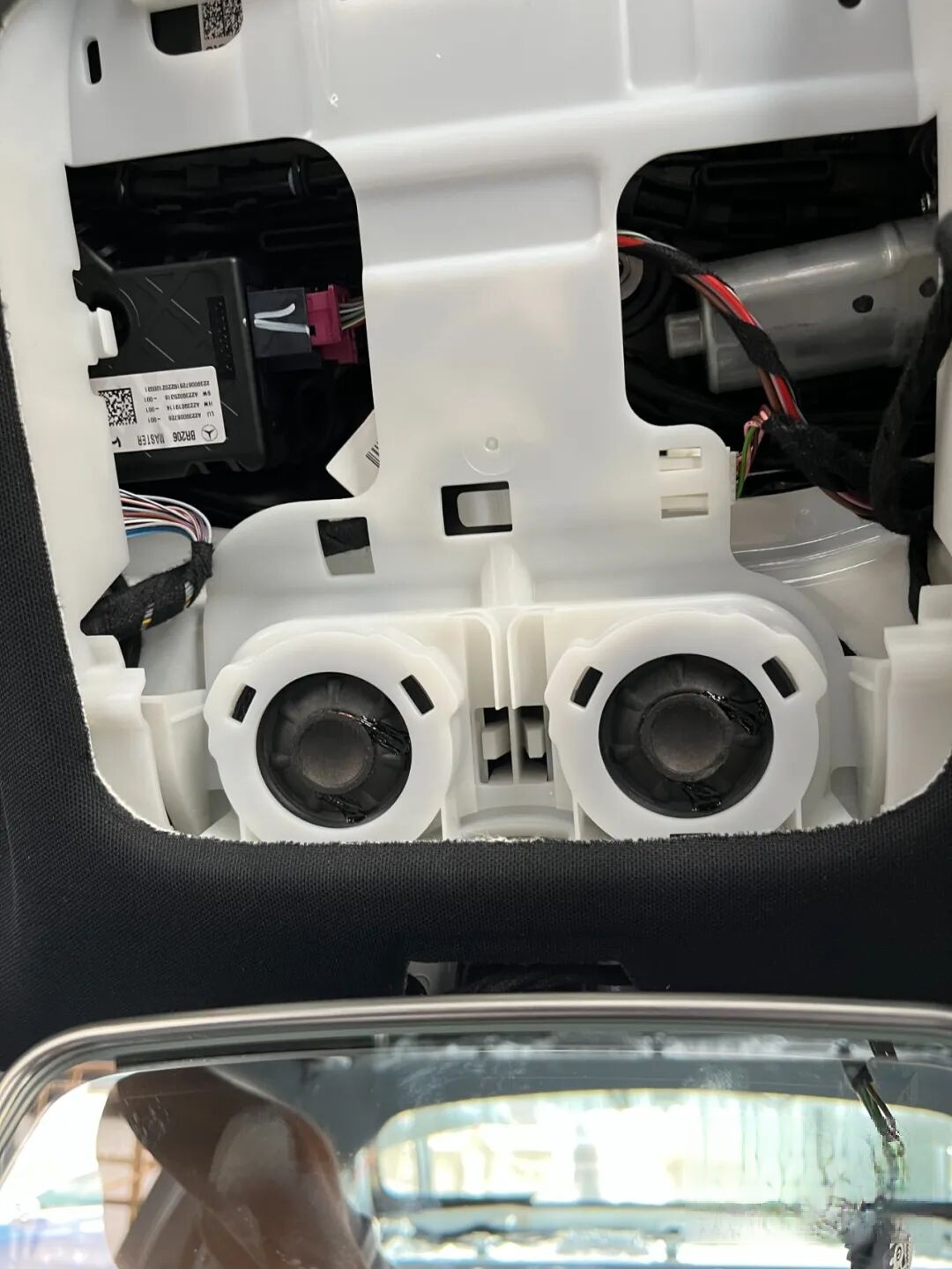

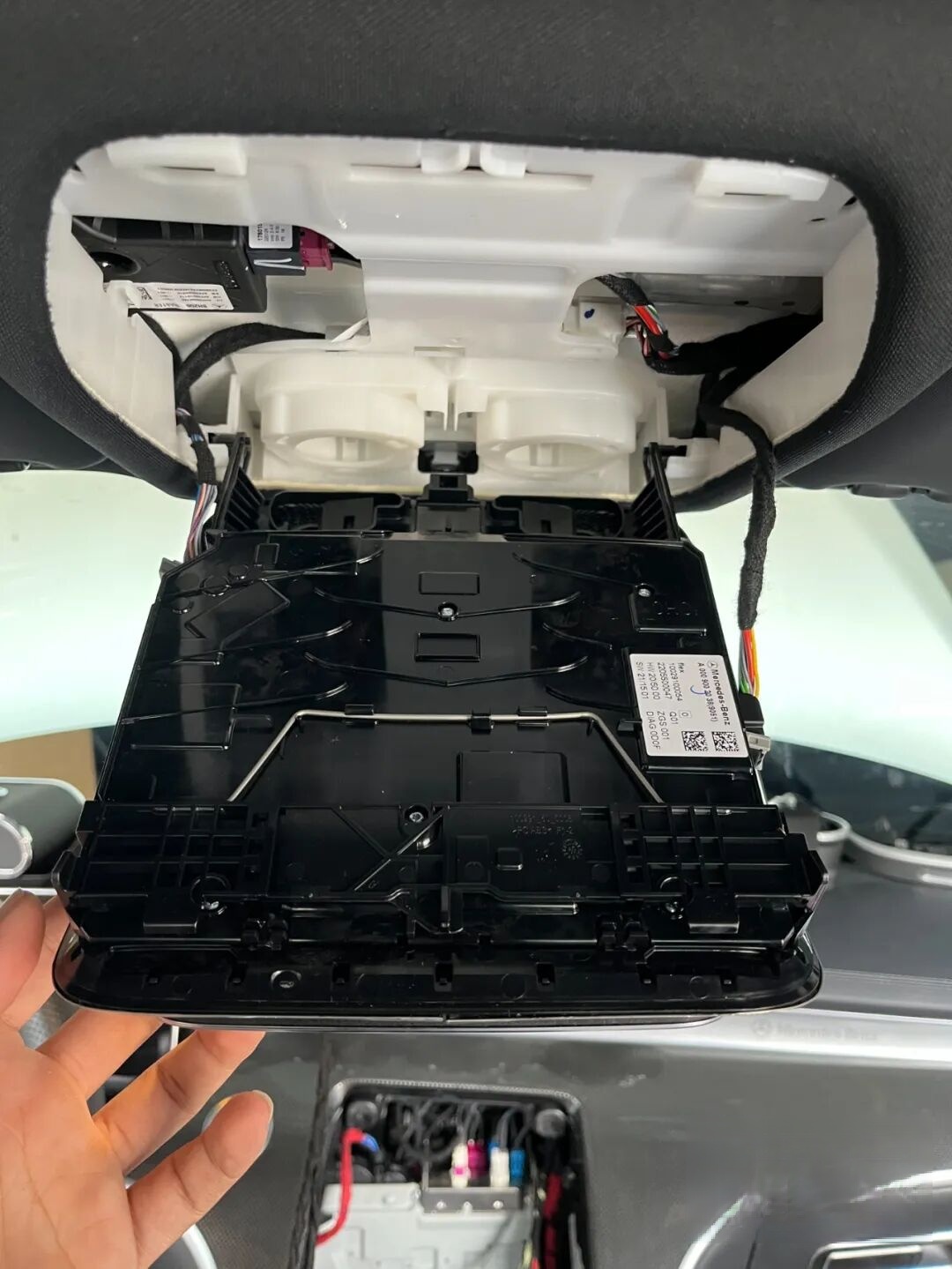

Remove the reading light switch panel—you’ll see the factory mounting points for the roof speakers

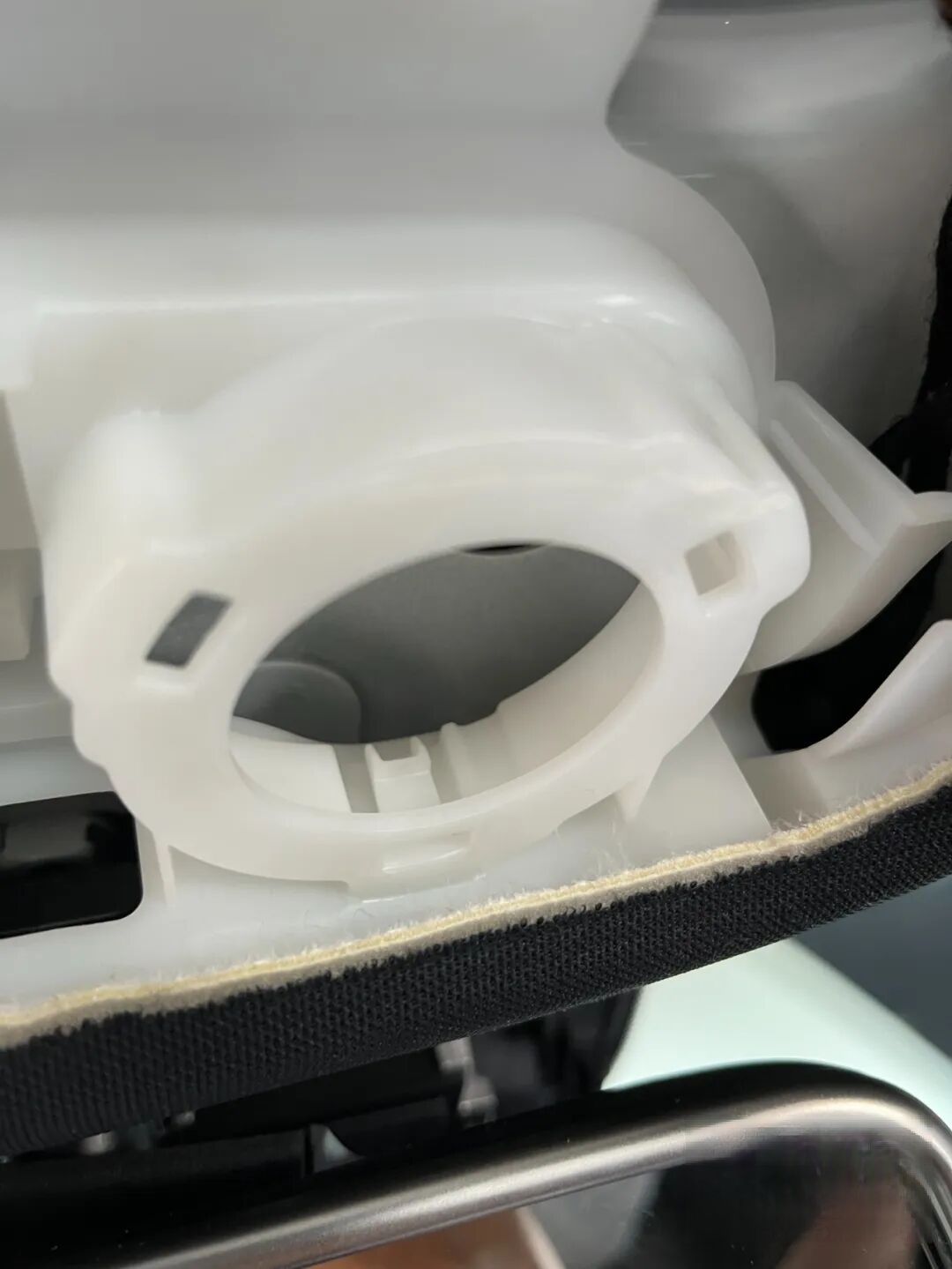

Mount the speaker using three differently sized plastic clips—inserted from the backside of the mounting base
The speaker mounting bracket attaches to the body via plastic clips—damaging them may cause rattles or squeaks

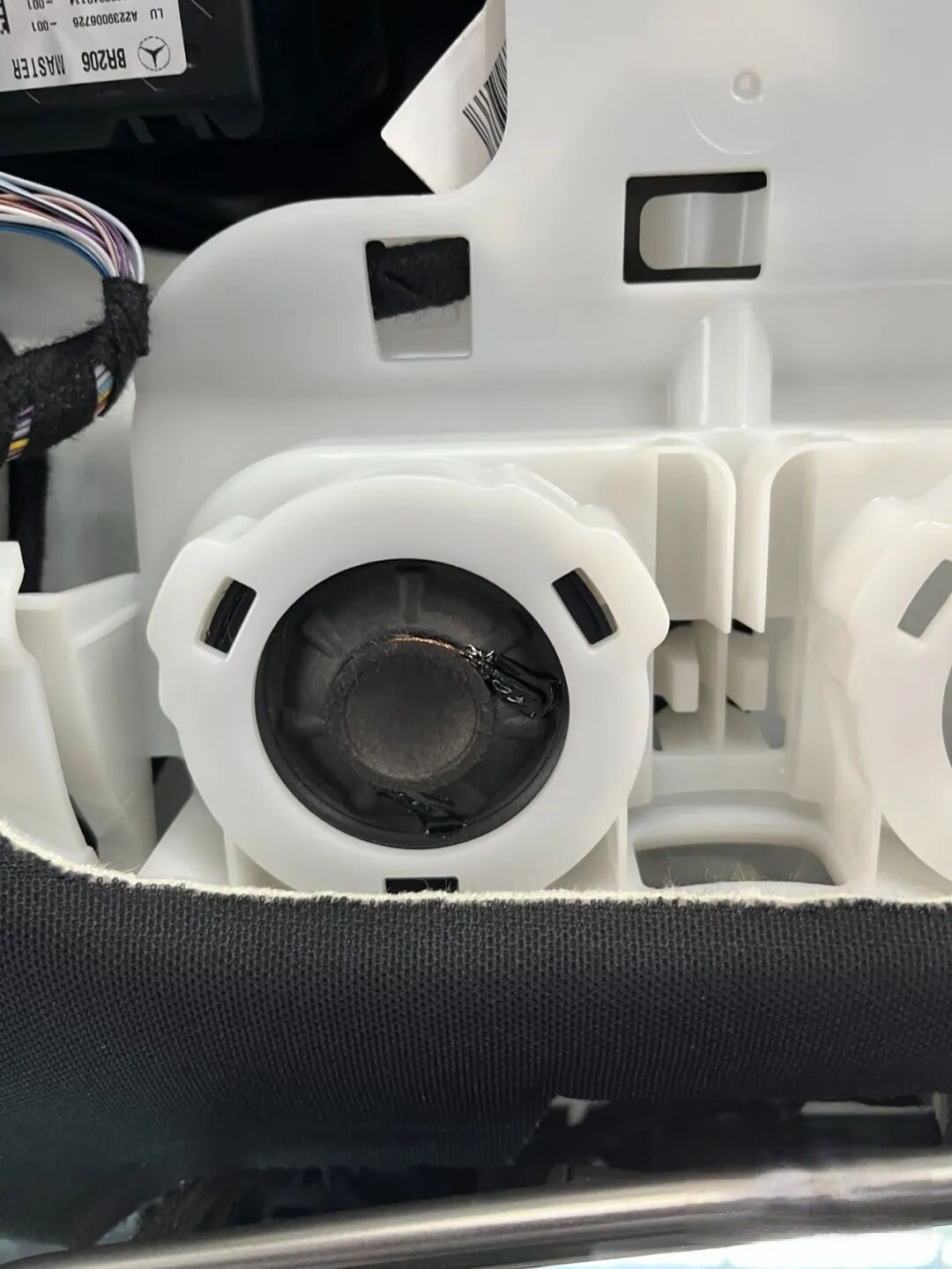

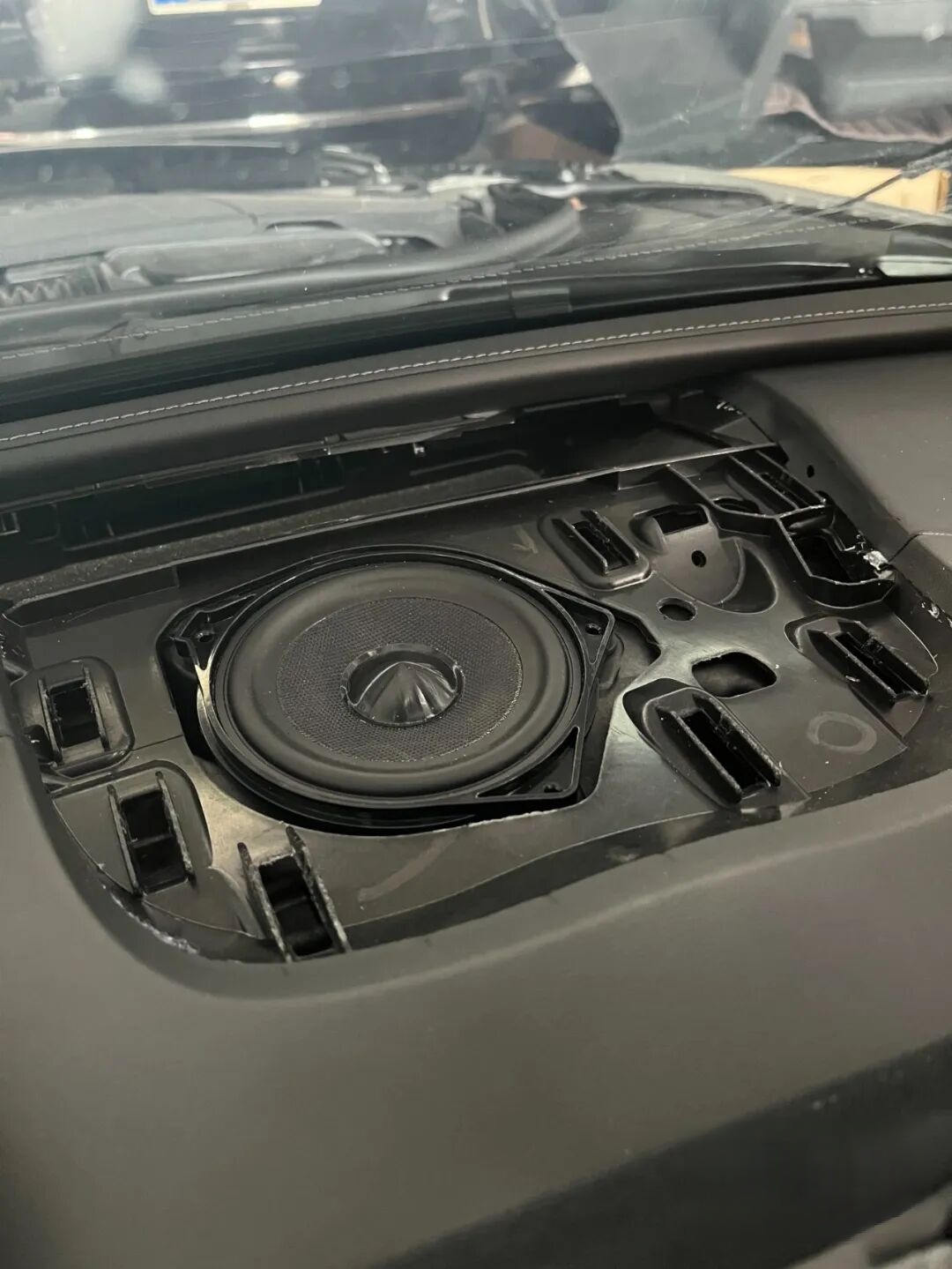

Install the center-dash speaker—the design differs from older models: previous versions included a tweeter in the center unit, while the new model relocates the tweeter to the reading light housing, increasing the total number of tweeters to two
Route the head unit harness—note: not all factory head units include the Burmester interface. If yours lacks it, the head unit must first be upgraded to support the factory Burmester system

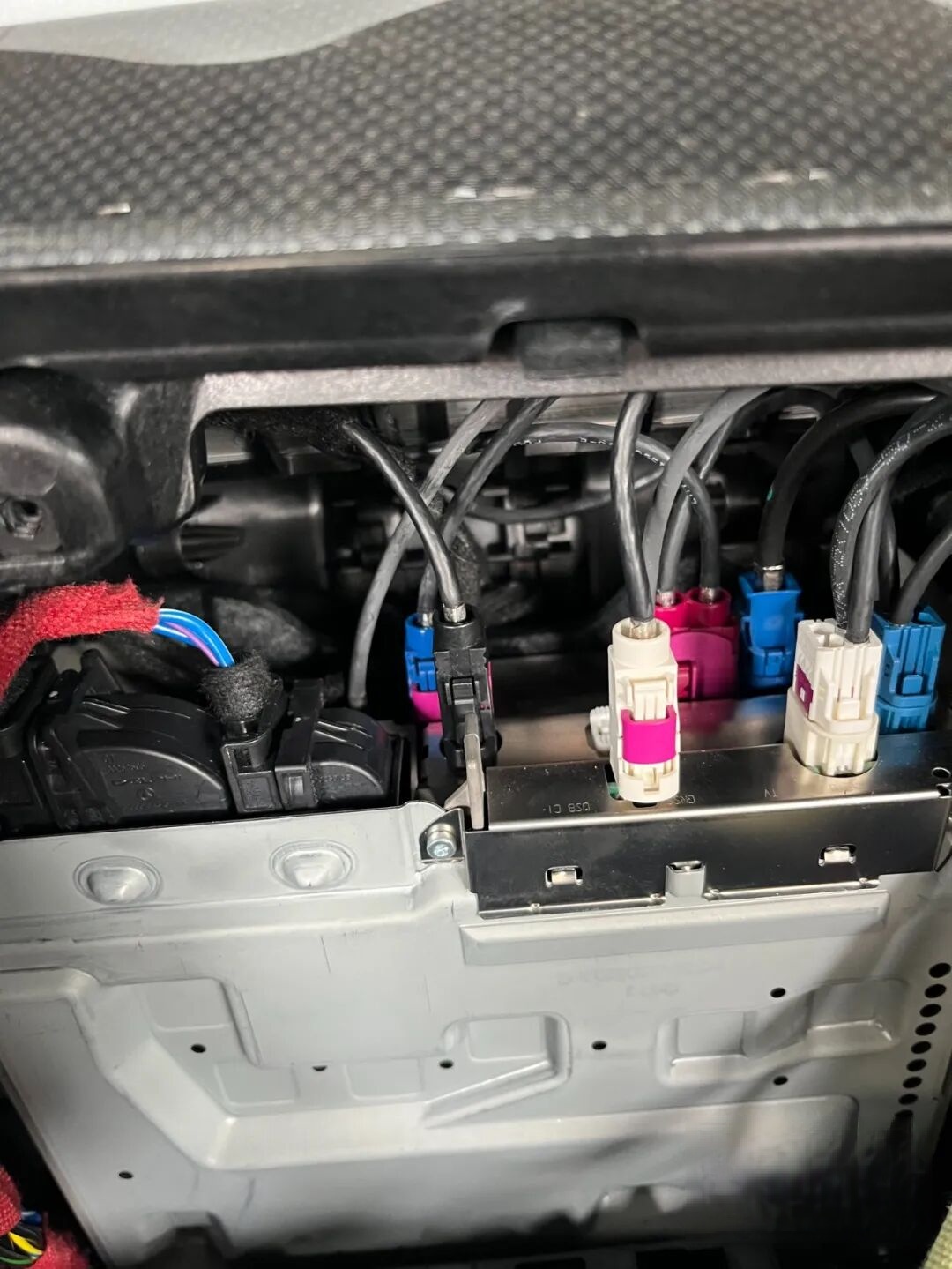

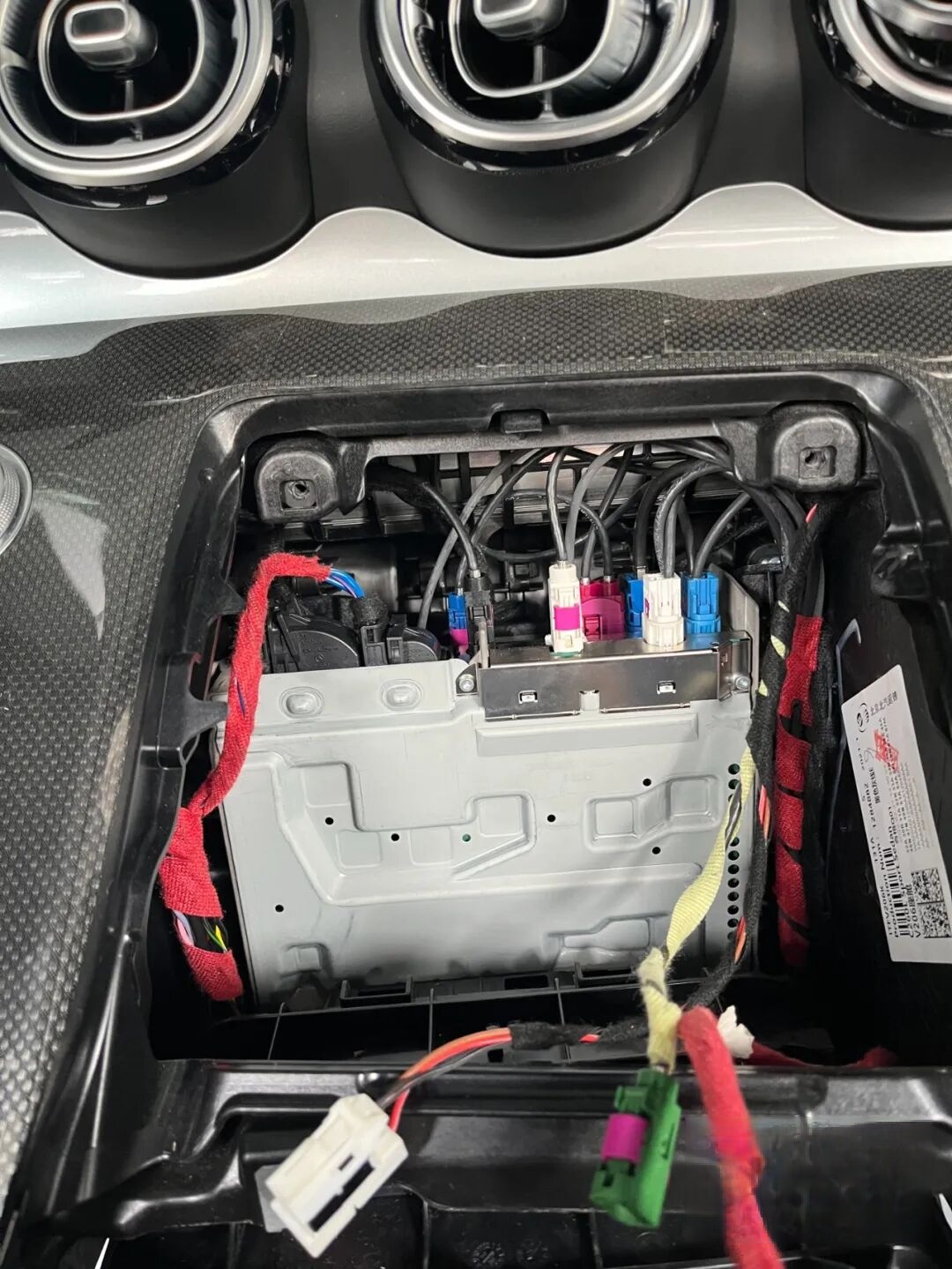

Close-up of the head unit’s black Burmester interface port

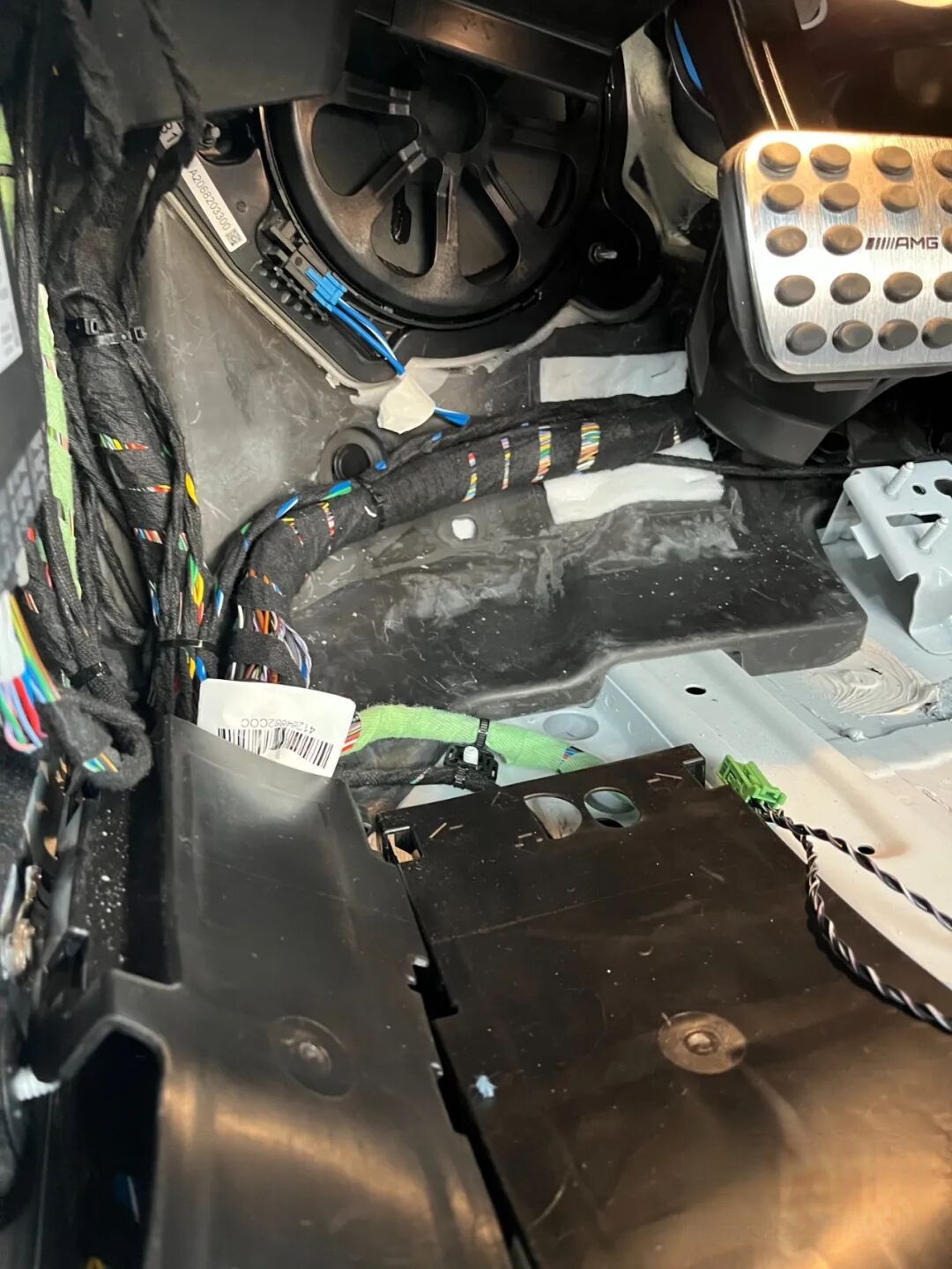

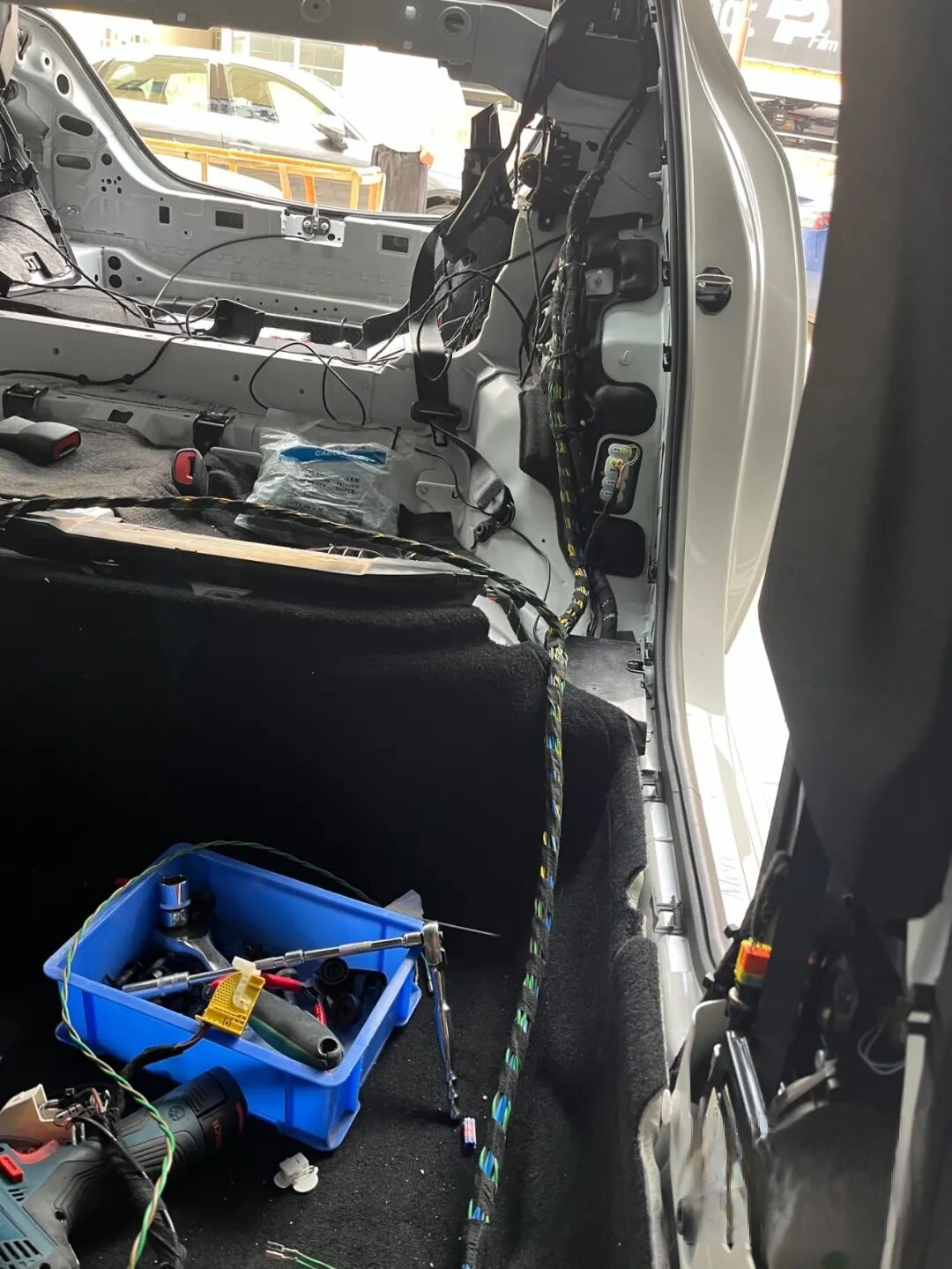

General reference images of full-vehicle wiring routing

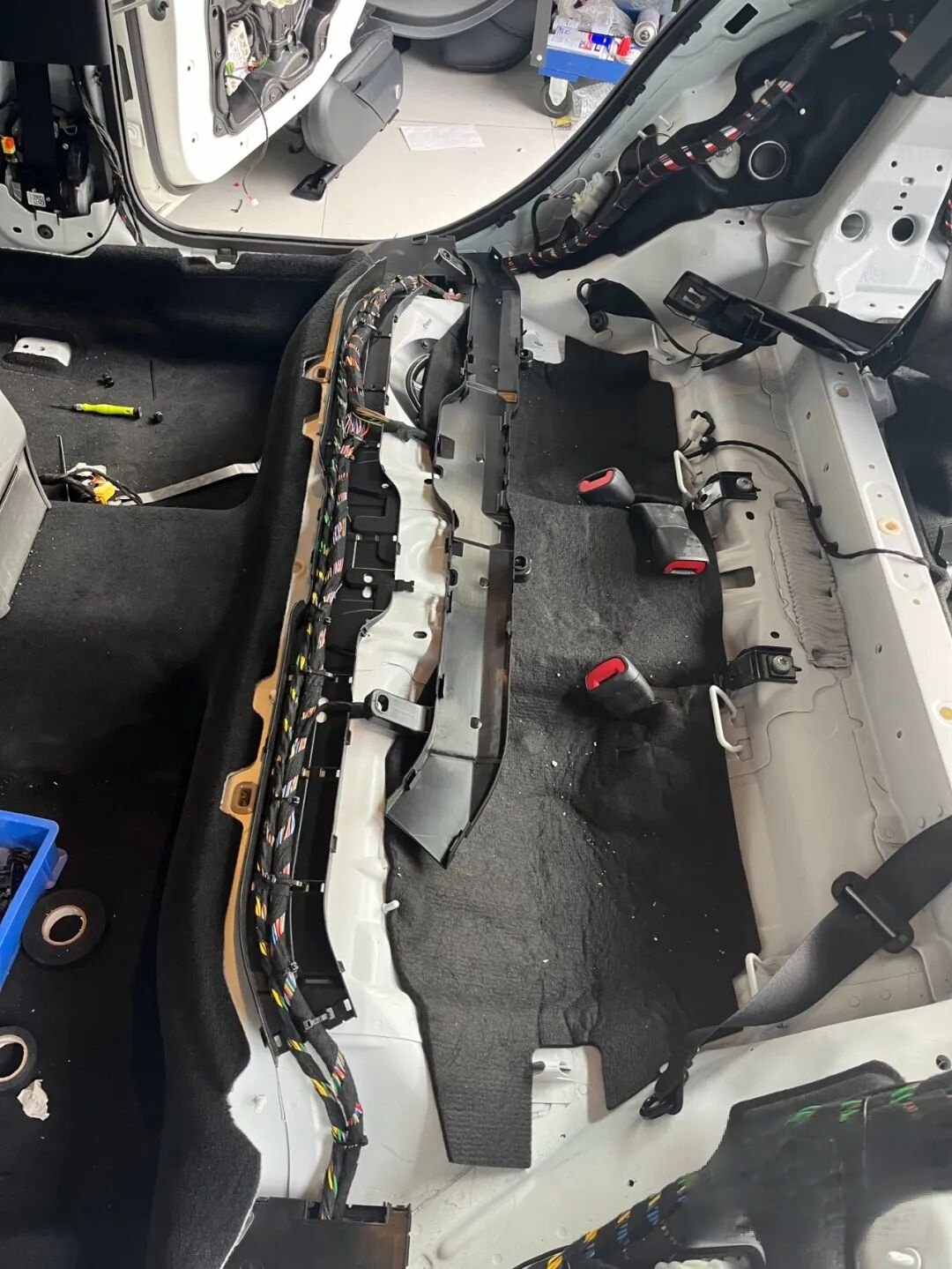

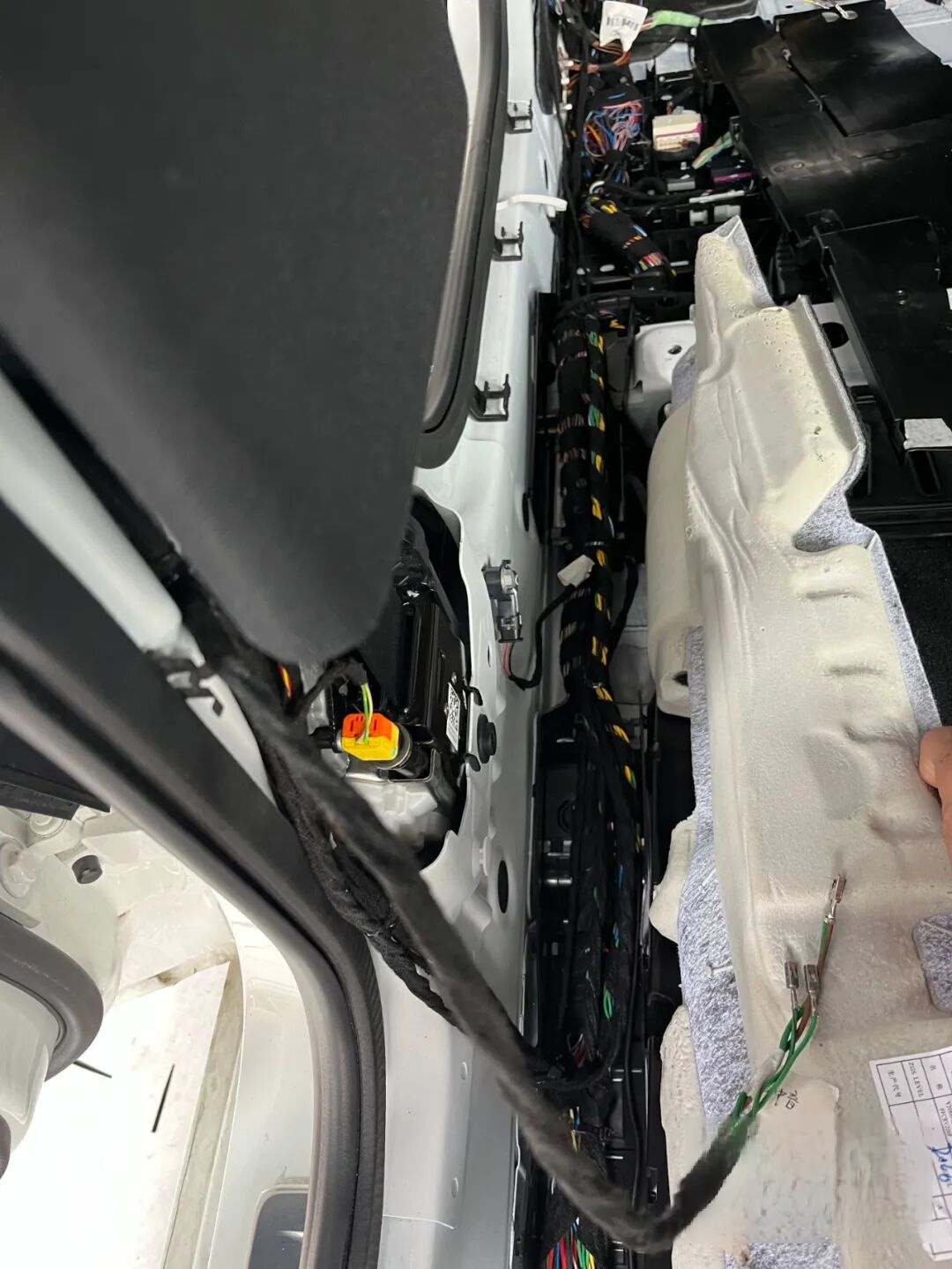

Left-side sill reinforcement beam area
Rear seat cushion wiring channel
Here, silence speaks louder than words
Double-check that all wiring is fully routed and correctly connected. Then connect the main power cable to the pre-wired slot in the fuse box. This power connection took ~20 minutes here—but with proper preparation, it can be completed in as little as two seconds

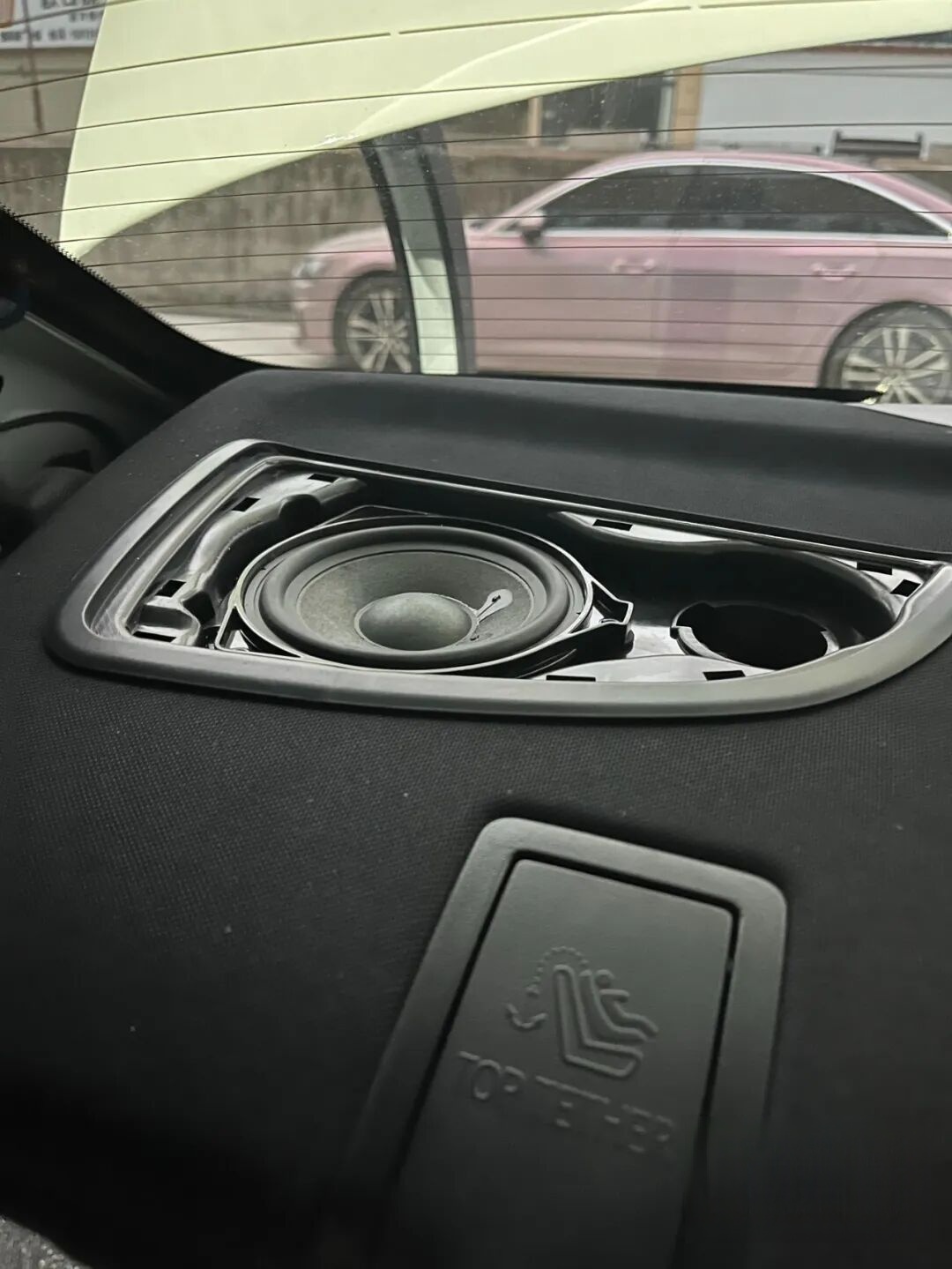

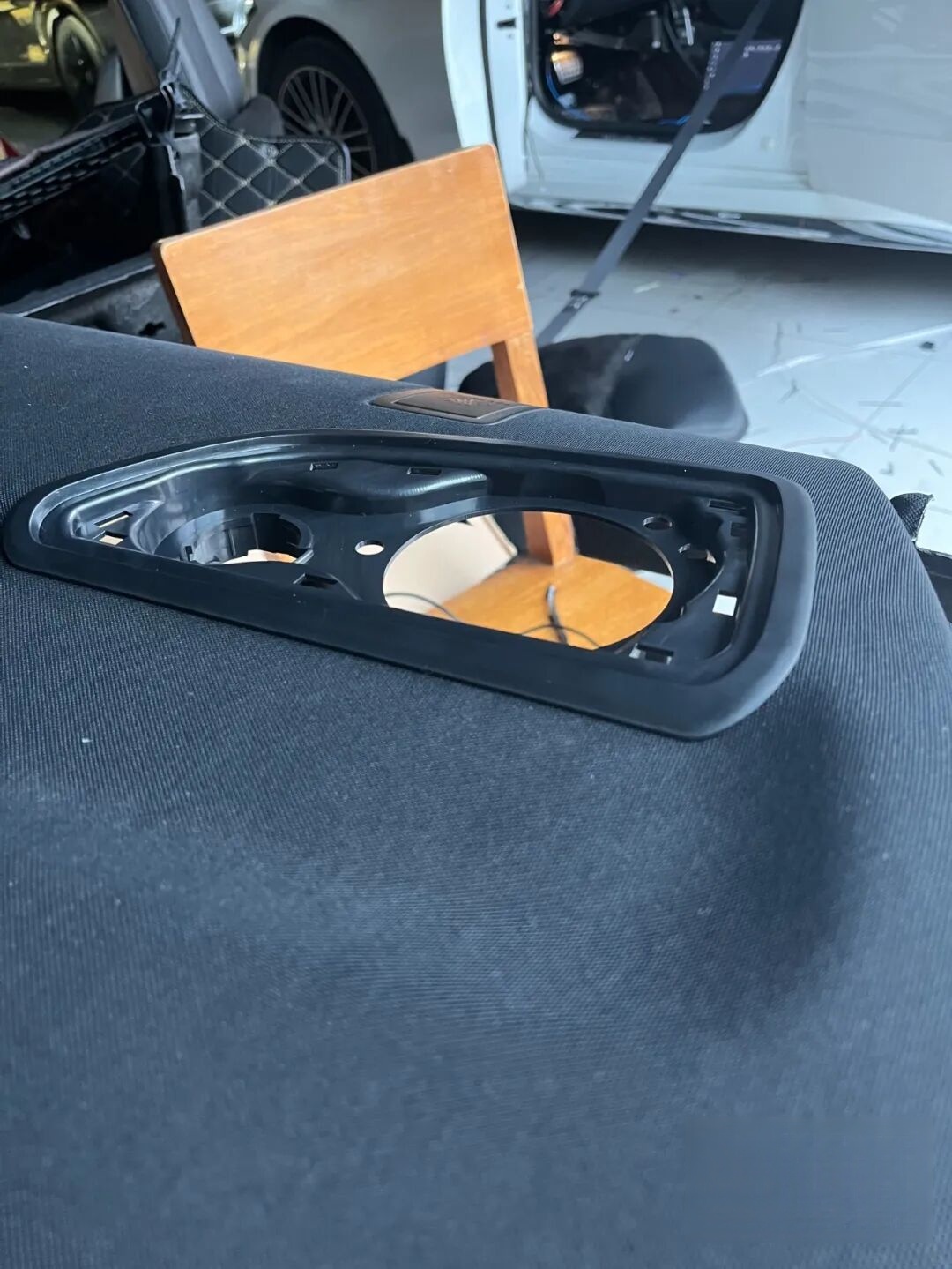

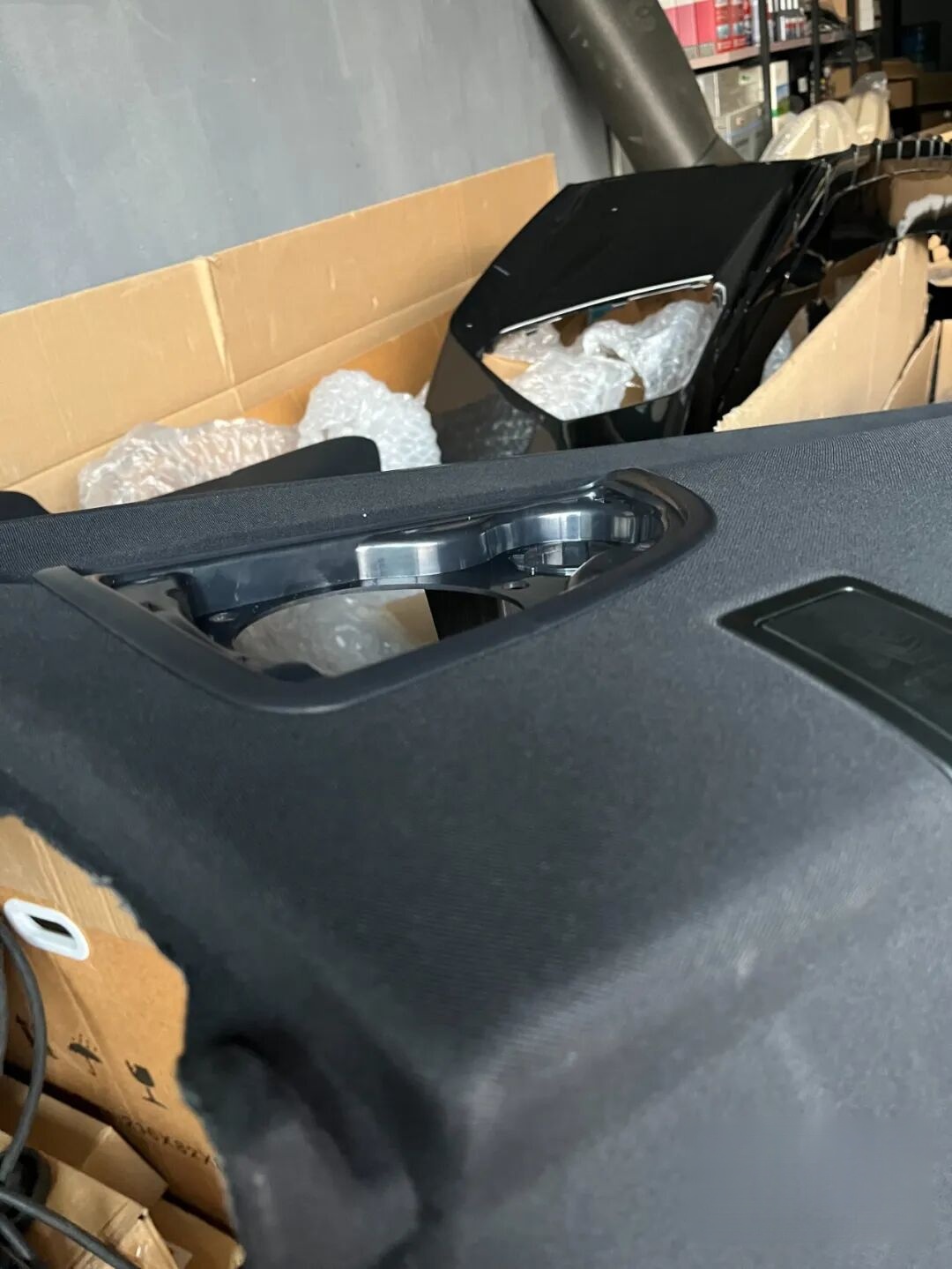

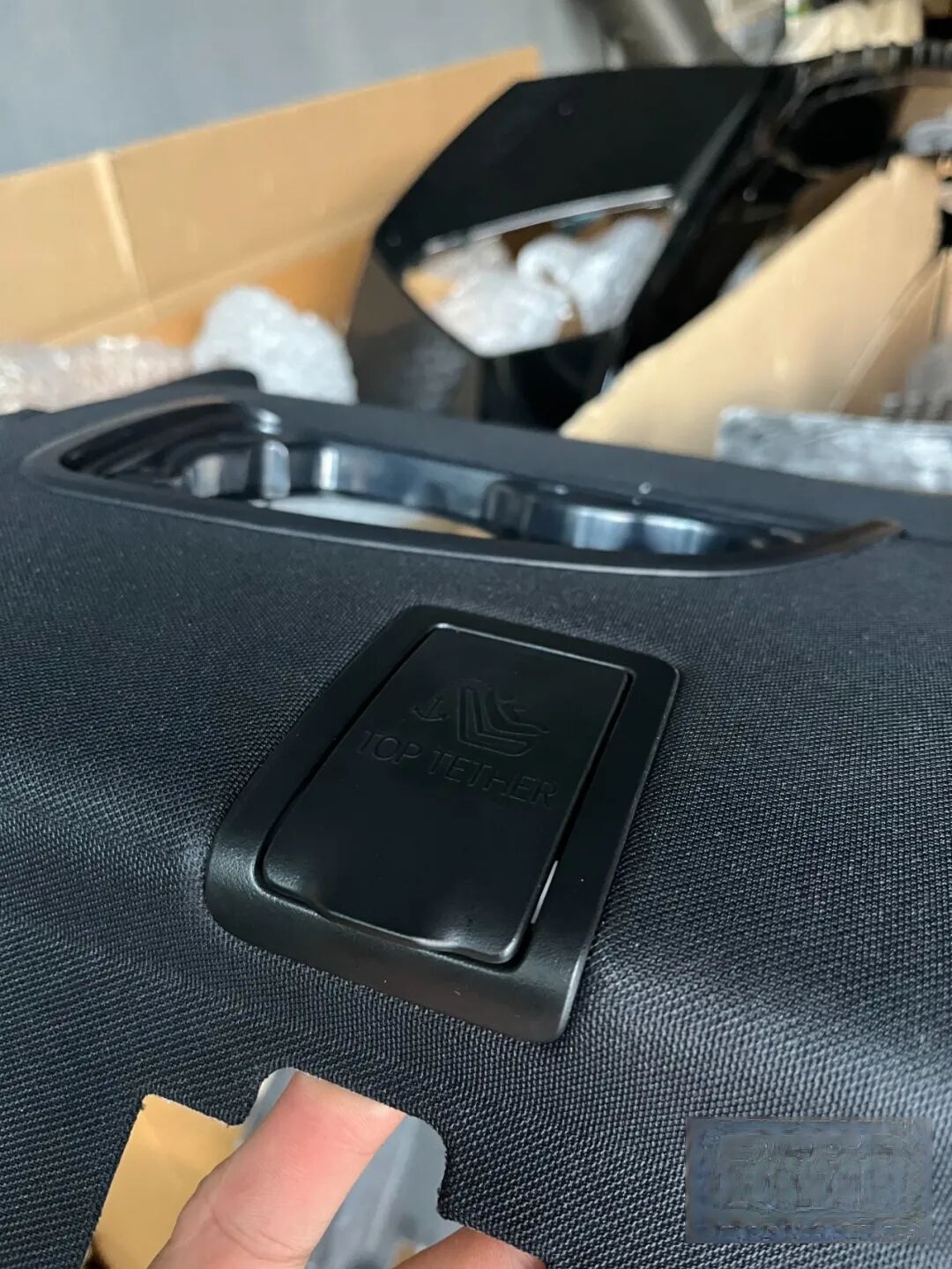

Cut mounting holes in the rear parcel shelf trim for the surround speakers
No template provided—entirely reliant on installer skill and feel
Final vehicle integration and functional testing
Programming and activation

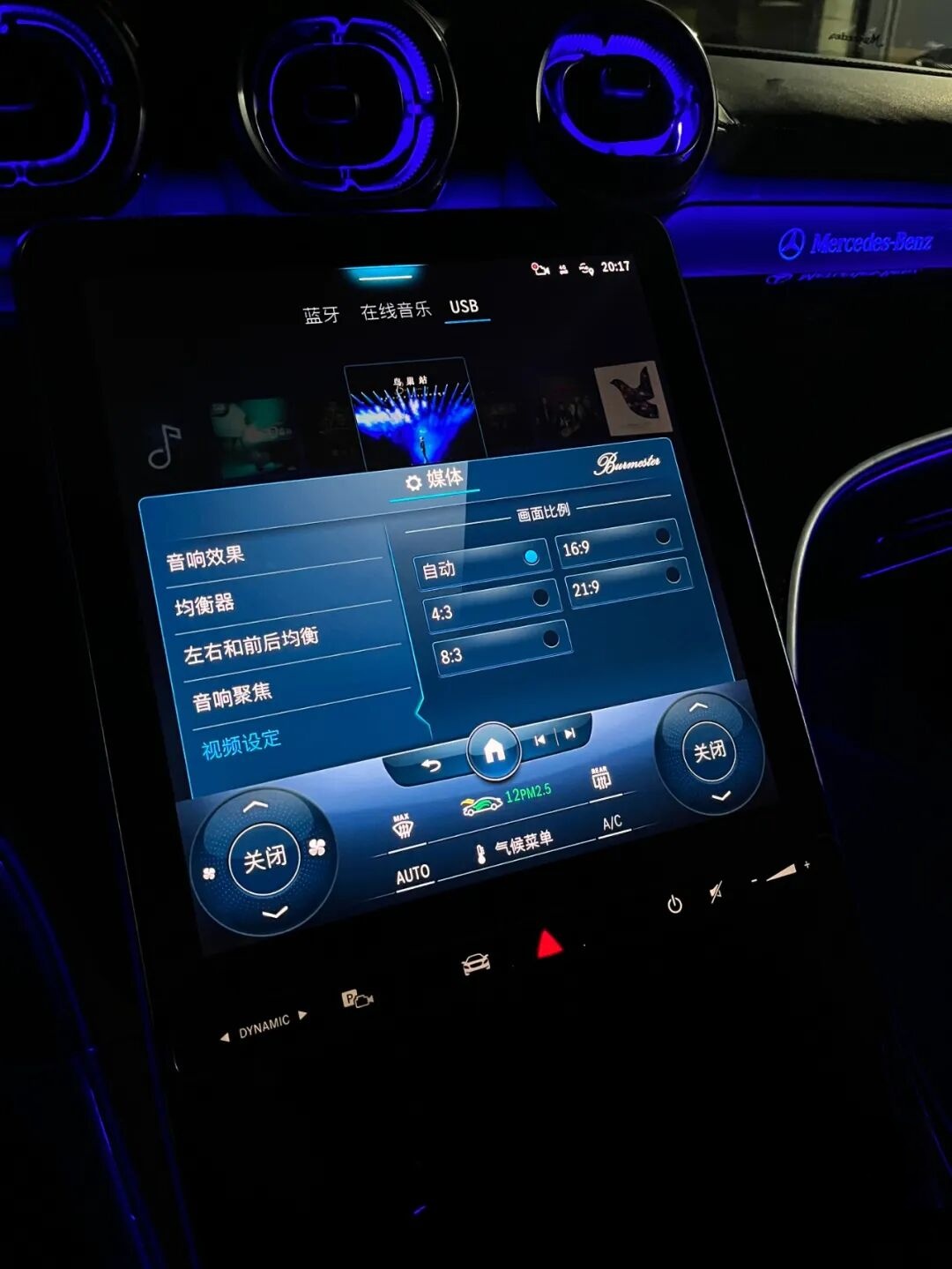

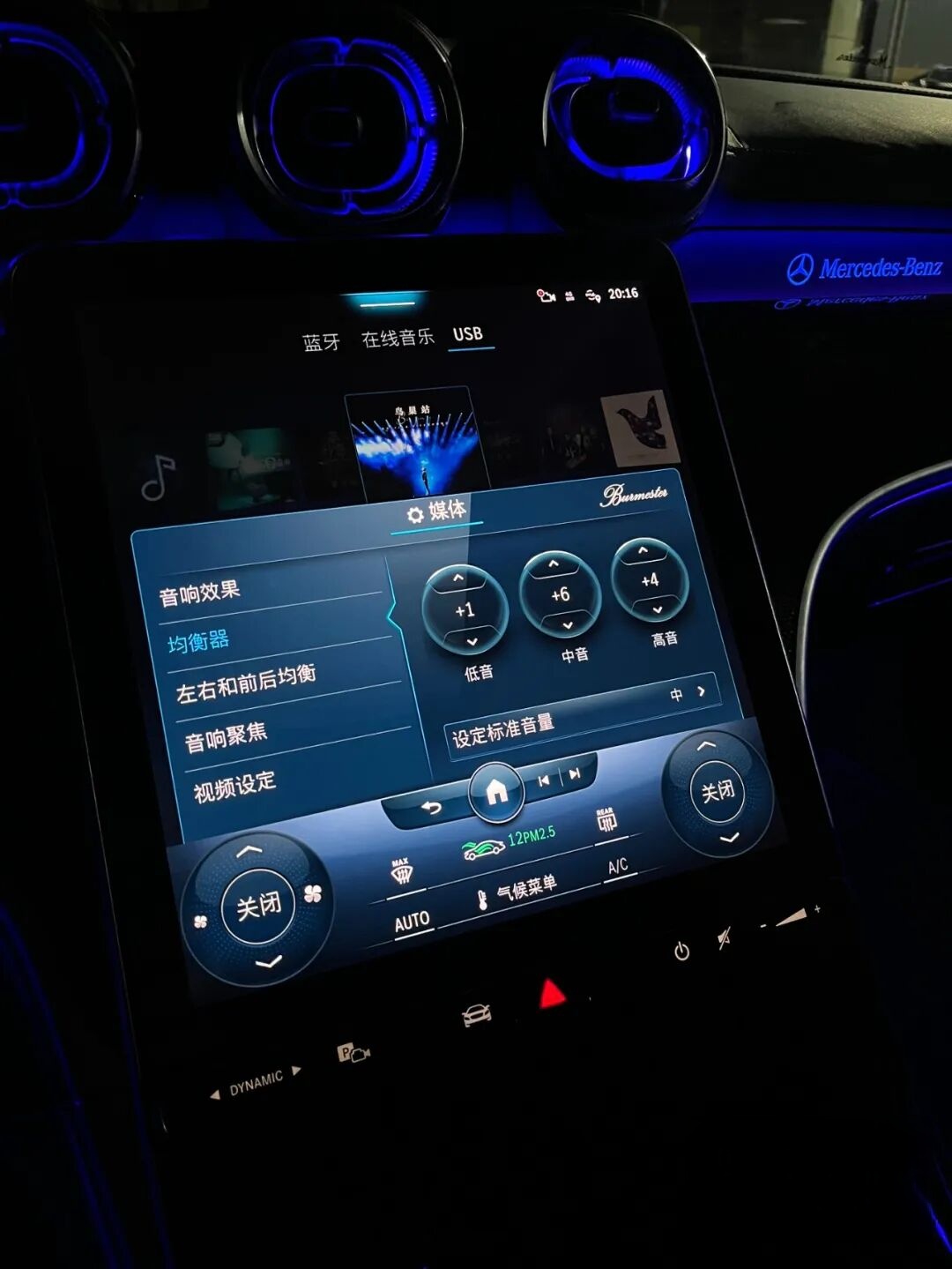

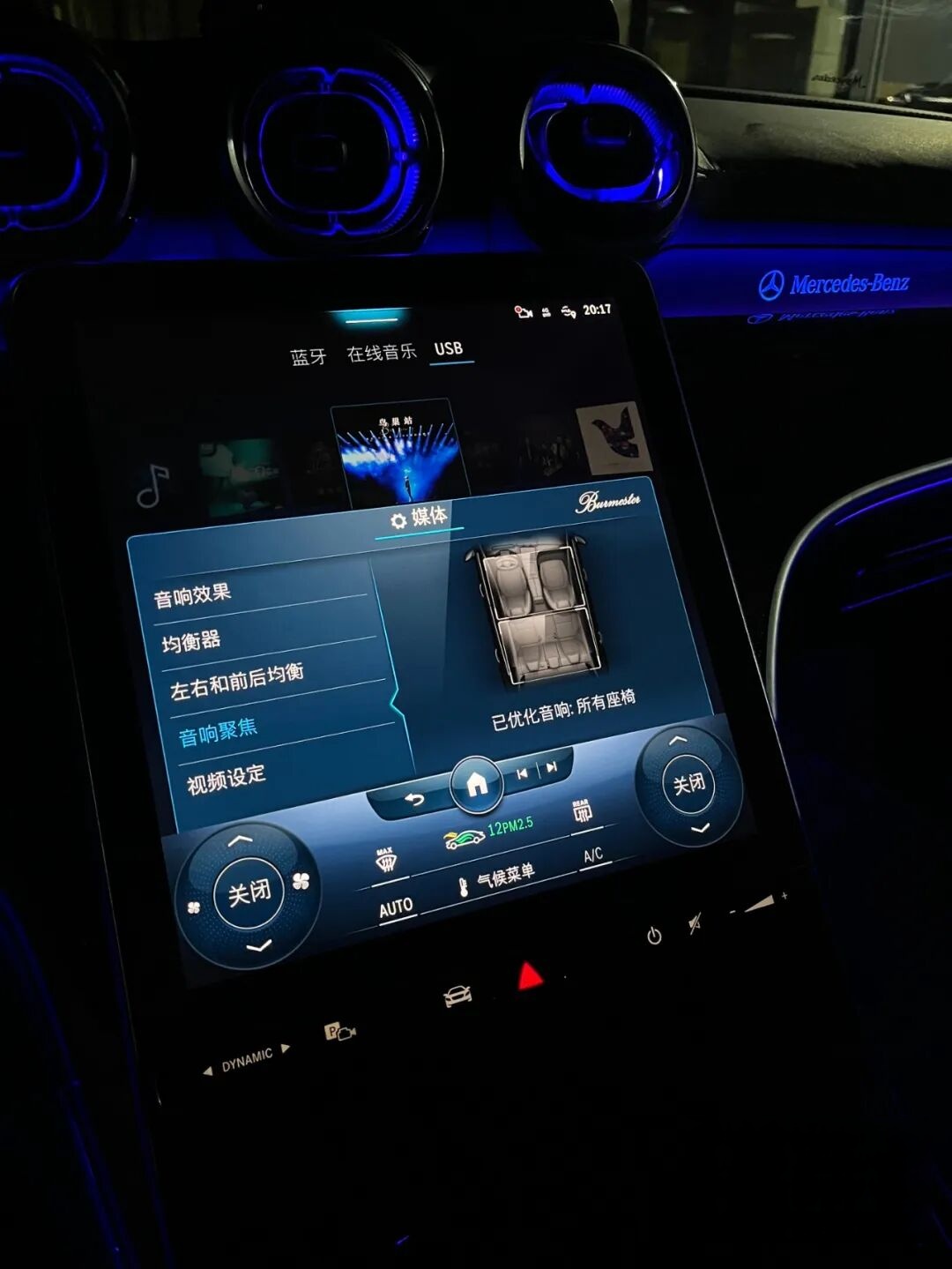

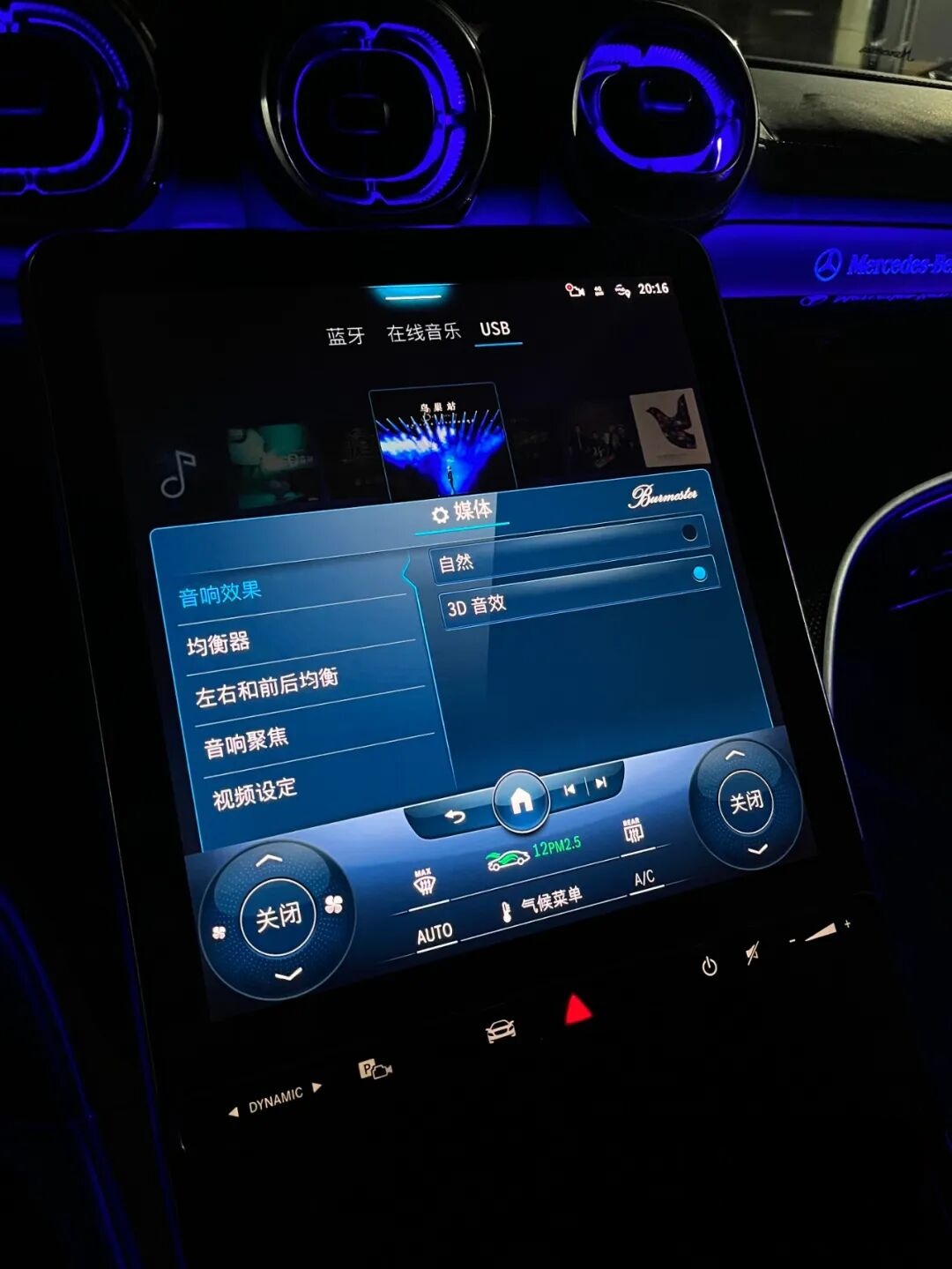

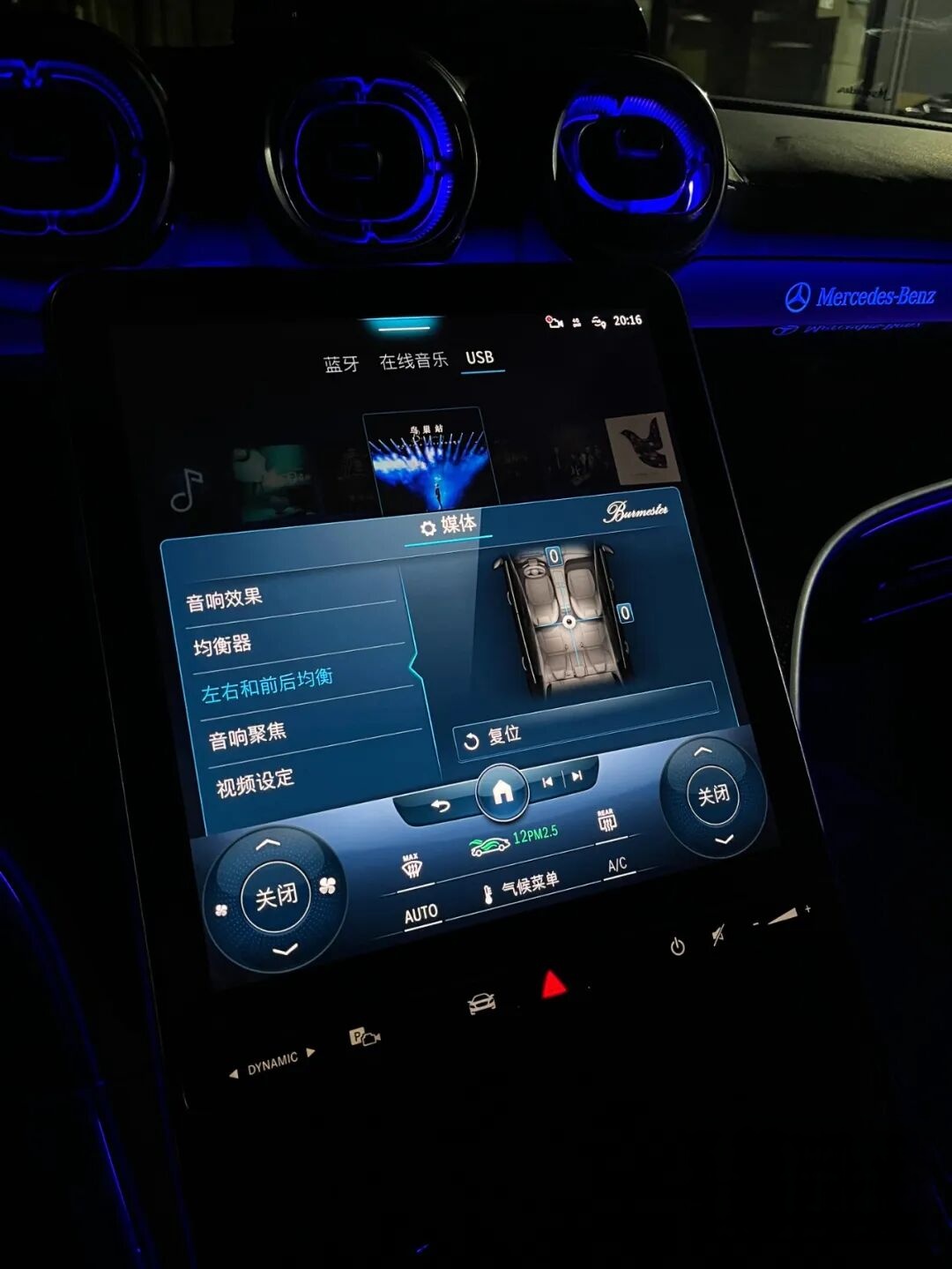

Success confirmed when the following control menu appears
Video demonstration
